NSN 5935-00-105-4012
Part Details | ELECTRICAL CONNECTOR END SEAL PLUG
5935-00-105-4012 A small, thin, cylindrically shaped item having a straight, smooth, solid, nonmetallic body. It may have a boss on one or both ends. It is specifically designed for sealing contact holes against moisture, dust, and the like, in electrical connectors. Excludes PLUG, END SEAL, ELECTRICAL CONDUIT; and PIN, STRAIGHT, HEADLESS.
Alternate Parts: 8230242001, 8230242-001, 8230208001, 8230208-001, 5935-00-105-4012, 00-105-4012, 5935001054012, 001054012
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1968 | 00-105-4012 | 27129 ( PLUG, END SEAL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

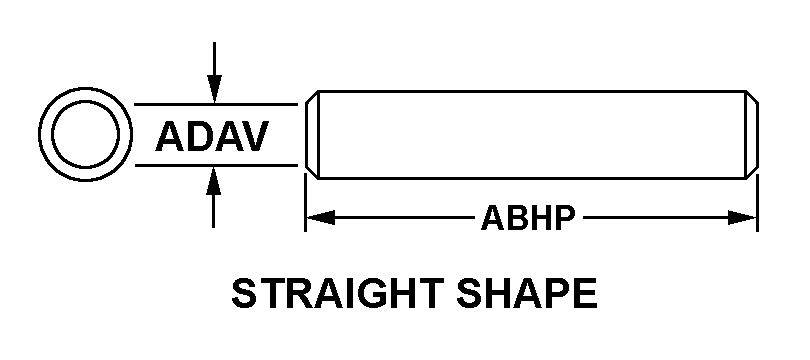

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-105-4012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8230242-001 | 04660 | AIL SYSTEMS INCSUB OF EATON CORP |
| 8230208-001 | 04660 | AIL SYSTEMS INCSUB OF EATON CORP |
Technical Data | NSN 5935-00-105-4012
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SHAPE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.610 INCHES MINIMUM AND 0.615 INCHES MAXIMUM |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
