NSN 5935-00-105-4041
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-105-4041 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 3503304, 350330-4, OSM2048055, OSM204-8055, 17377, 0SM2048055, 0SM204-8055, 17377, 3503304, 350330-4, 5935-00-105-4041, 00-105-4041, 5935001054041, 001054041
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1968 | 00-105-4041 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

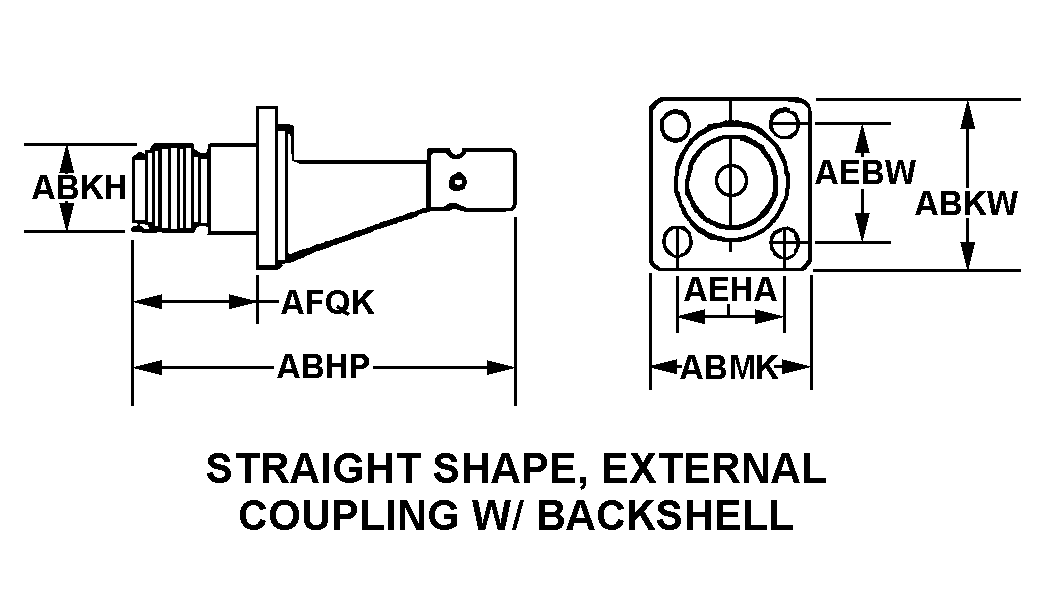

STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL
Cross Reference | NSN 5935-00-105-4041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 350330-4 | 80249 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| OSM204-8055 | 96341 | COBHAM ADVANCED ELECTRONIC SOLUTIONSINC. |
| 17377 | 08718 | ITT CANNON ELECTRICPHOENIX DIV |
| 0SM204-8055 | 08718 | ITT CANNON ELECTRICPHOENIX DIV |
| 17377 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 350330-4 | 59475 | REX SYSTEMS INCORPORATED |
Technical Data | NSN 5935-00-105-4041
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 0.760 INCHES NOMINAL |
| BUSHING DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.340 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.340 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.310 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.102 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 36 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 303,CON A FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | GOLD AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-26074; CL 1 MIL SPEC 2ND TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | PRESSURE PROOF AND HEAT RESISTANT AND COLD RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.105 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
