NSN 5935-00-105-4638
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-105-4638 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: W2223S31, W22-23S31, 5935-00-105-4638, 00-105-4638, 5935001054638, 001054638
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1968 | 00-105-4638 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

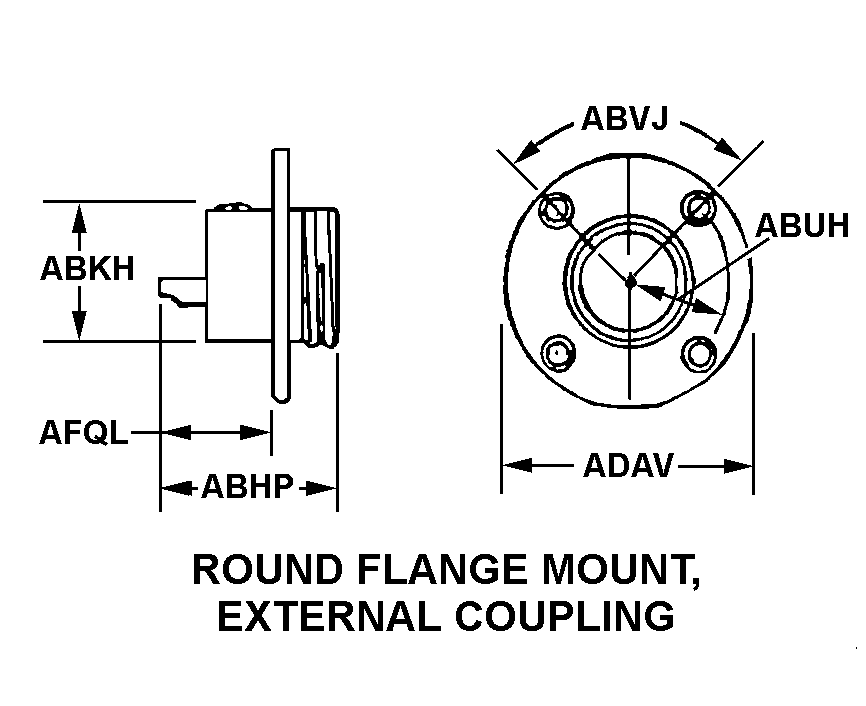

ROUND FLANGE MOUNT, EXTERNAL COUPLING
Cross Reference | NSN 5935-00-105-4638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W22-23S31 | 71468 | ITT CORPORATIONDBA I T T CANNON |
Technical Data | NSN 5935-00-105-4638
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ROUND FLANGE MOUNT, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.343 INCHES NOMINAL |
| BUSHING DIAMETER | 1.437 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 1.243 INCHES NOMINAL |
| OVERALL DIAMETER | 3.187 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 0.943 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.204 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD SIZE | 1.812 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 10 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
