NSN 5935-00-106-7083
Part Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-106-7083 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 20122247, 20-122247, 4120473, 412047-3, 14803190, 1-480319-0, STD14303, STD-1430-3, 4120473, 412047-3, 259100007004, 259-100007-004, 75D76, 131084157, 131084-157, 457415044, 45-741-5044, 20103875, 2010-3875, 61630994, 6163099-4, 61630992, 6163099-2, 6105854, 2270741, 227074-1, 3725884320, 372-5884-320, FT10535, 2422 025 02898, 16776775103, 16776775-103, 14803190, 1-480319-0, 129934923, 12993492-3, 12993492, 5935-00-106-7083, 00-106-7083, 5935001067083, 001067083
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 24, 1968 | 00-106-7083 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

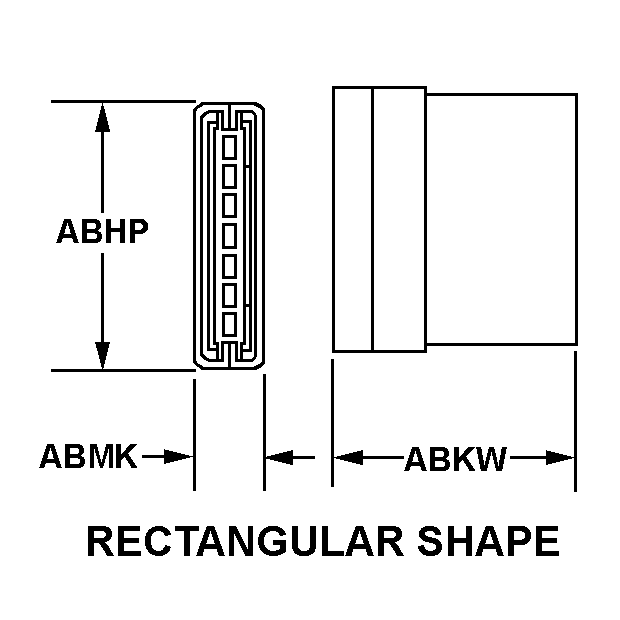

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-106-7083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20-122247 | 11359 | ADAGE INC |
| 412047-3 | 20284 | AIMTRON SYSTEMS LLCDBA TARGET |
| 1-480319-0 | 04618 | AMP PRODUCTS CORPAMP SPECIAL INDUSTRIES DIV |
| STD-1430-3 | 33443 | BASIC AMERICAN INC |
| 412047-3 | 12909 | CARDION INC |
| 259-100007-004 | 20886 | COMPRO COMPUTER SERVICES, INC.DBA COMPRO |
| 75D76 | 72914 | GRIMES AEROSPACE COMPANYDBA HONEYWELL |
| 131084-157 | 91417 | HARRIS CORPORATIONDBA GOVERNMENT COMMUNICATIONS |
| 45-741-5044 | K0801 | KELVIN HUGHES LIMITED |
| 2010-3875 | 08241 | LOCKHEED MARTIN CORPLOCKHEED MARTIN MISSION SYSTEMS |
| 6163099-4 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6163099-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6105854 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 227074-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 372-5884-320 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| FT10535 | K1090 | SIMOCO EUROPE LTD |
| 2422 025 02898 | K1090 | SIMOCO EUROPE LTD |
| 16776775-103 | 28009 | SYPRIS ELECTRONICS, LLCDIV SYPRIS ELECTRONICS, LLC - |
| 1-480319-0 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 12993492-3 | 19200 | US ARMY ARDEC RDECOM |
| 12993492 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5935-00-106-7083
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE |
| OVERALL LENGTH | 0.605 INCHES MINIMUM AND 0.615 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.325 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |
| OVERALL WIDTH | 0.925 INCHES MINIMUM AND 0.935 INCHES MAXIMUM |
| COLOR | NATURAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| SPECIFICATION/STANDARD DATA | 91417-131084 MANUFACTURERS SOURCE CONTROL |
| OPERATING TEMP RATING | 50.0 DEG FAHRENHEIT MINIMUM AND 130.0 DEG FAHRENHEIT MAXIMUM |
