NSN 5935-00-107-7905
Part Details | ELECTRICAL CONNECTOR GUIDE
5935-00-107-7905 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Alternate Parts: 10280673, 10280673, 10280673, 10280673, 5935-00-107-7905, 00-107-7905, 5935001077905, 001077905
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 20, 1972 | 00-107-7905 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

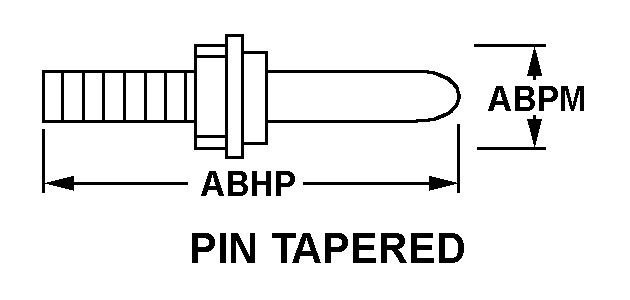

PIN TAPERED
Cross Reference | NSN 5935-00-107-7905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10280673 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 10280673 | 64609 | BANNER MACHINE COMPANY, INC. |
| 10280673 | 56232 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 10280673 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-107-7905
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PIN TAPERED |
| OVERALL LENGTH | 1.540 INCHES MINIMUM AND 1.580 INCHES MAXIMUM |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | CHROMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
