NSN 5935-00-109-9880
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-109-9880 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 4150361001, 415-0361-001, A21005008700, A210-050087-00, 13315106, 133-151-06, 5935-00-109-9880, 00-109-9880, 5935001099880, 001099880
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 02, 1968 | 00-109-9880 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

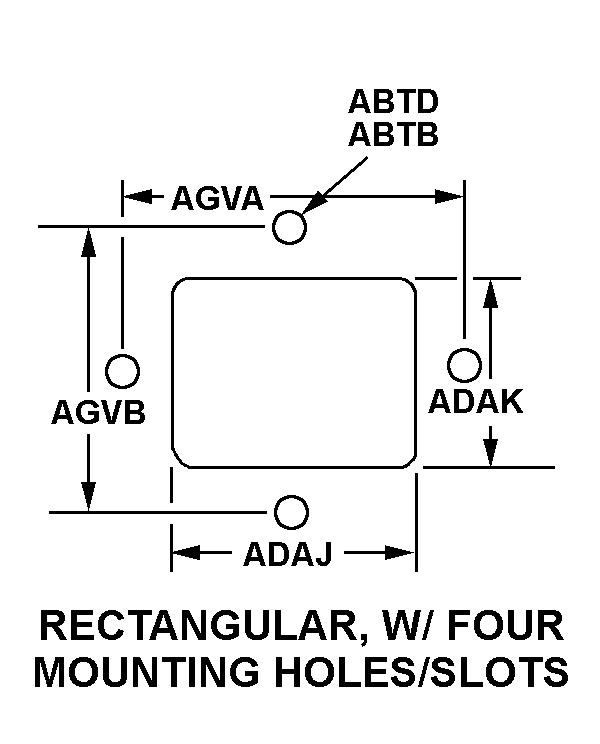

RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS
Cross Reference | NSN 5935-00-109-9880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 415-0361-001 | 94756 | BOEING COMPANY, THEDBA BOEING |
| A210-050087-00 | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO.DIV GUARDIAN ELECTRIC MFG CO |
| 133-151-06 | 26742 | METHODE ELECTRONICS INC |
Technical Data | NSN 5935-00-109-9880
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MATERIAL | COPPER ALLOY |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 16 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | RECTANGULAR, W/FOUR MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.032 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.437 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.359 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| FABRICATION METHOD | MOLDED |
