NSN 5935-00-110-7466
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-110-7466 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 80594G1, 8059-4G1, NS503191, NS503-19-1, NS50319, NS503-19, 80594G1, 8059-4G1, 2295752, 229575-2, 2295750002, 229575-0002, 5935-00-110-7466, 00-110-7466, 5935001107466, 001107466
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 16, 1968 | 00-110-7466 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
PCB MOUNT

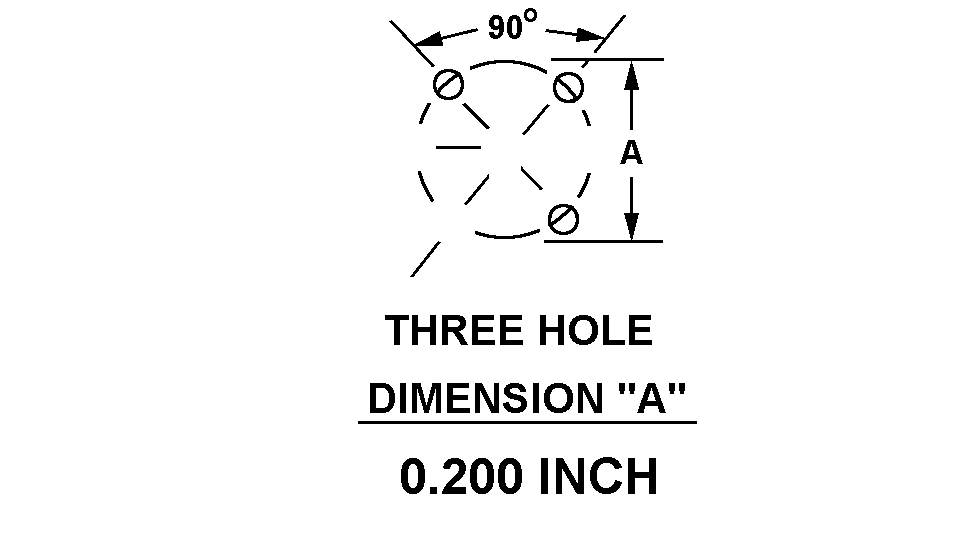

THREE HOLE DIMENSION "A" 0.200 INCH
RECTANGULAR
Cross Reference | NSN 5935-00-110-7466
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8059-4G1 | 91506 | AUGAT INC |
| NS503-19-1 | 06776 | ROBINSON NUGENT INC |
| NS503-19 | 06776 | ROBINSON NUGENT INC |
| 8059-4G1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 229575-2 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 229575-0002 | 65597 | THALES DEFENSE & SECURITY, INC. |
Technical Data | NSN 5935-00-110-7466
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| MISSING CONTACT DESIGNATION | 4TH CONTACT POSITION |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND COPPER |
| BODY STYLE | PCB MOUNT |
| OVERALL HEIGHT | 0.252 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.370 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.062 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 3 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | THREE HOLE DIMENSION "A" 0.200 INCH |
| POLARIZATION TYPE | SLOT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
