NSN 5935-00-110-9248
Part Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-00-110-9248 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Alternate Parts: 81C843001, 81C843-001, 500185, 500-18-5, 5935-00-110-9248, 00-110-9248, 5935001109248, 001109248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 12, 1968 | 00-110-9248 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

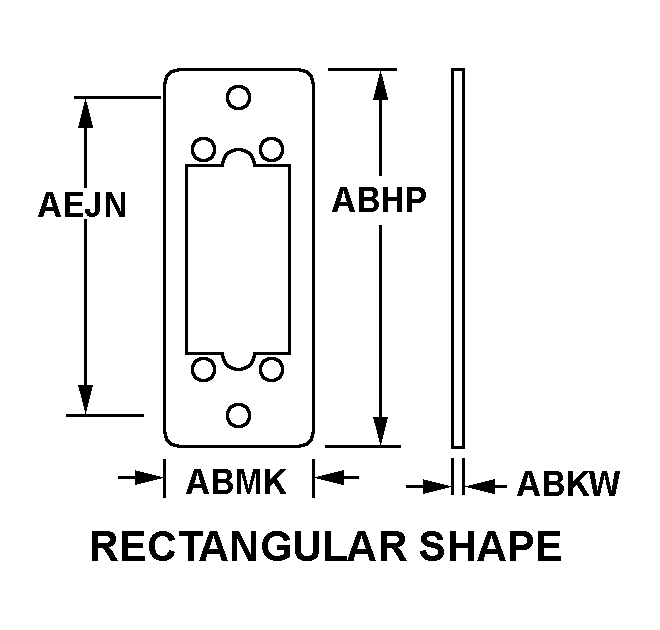

RECTANGULAR SHAPE
Cross Reference | NSN 5935-00-110-9248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81C843-001 | 04660 | AIL SYSTEMS INCSUB OF EATON CORP |
| 500-18-5 | 95238 | WINCHESTER ELECTRONICS CORPORATIONDBA CONTINENTAL CONNECTOR |
Technical Data | NSN 5935-00-110-9248
| Characteristic | Specifications |
|---|---|
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MATERIAL | STEEL |
| STYLE DESIGNATOR | RECTANGULAR SHAPE |
| OVERALL LENGTH | 1.600 INCHES NOMINAL |
| OVERALL HEIGHT | 0.109 INCHES NOMINAL |
| OVERALL WIDTH | 0.480 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL |
| SURFACE TREATMENT | PASSIVATE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.116 INCHES NOMINAL |
