NSN 5935-00-111-5021
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-111-5021 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 09X215470, 5935-00-111-5021, 00-111-5021, 5935001115021, 001115021
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 16, 1968 | 00-111-5021 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

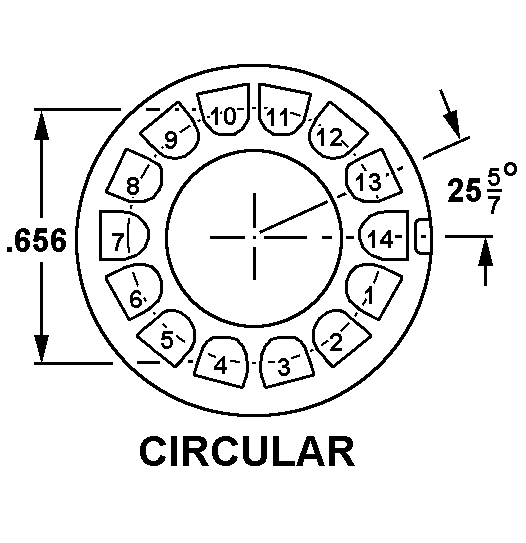

REFERENCE DRAWINGS & PICTURES
TV TUBE MOUNT
CIRCULAR
Cross Reference | NSN 5935-00-111-5021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09X215470 | 98738 | HERLEY CHICAGODBA STEWART WARNER ELECTRONICS |
Technical Data | NSN 5935-00-111-5021
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | TV TUBE MOUNT |
| OVERALL DIAMETER | 1.938 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 14 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | TUBE |
| POLARIZATION TYPE | CENTER KEY HOLE |
| SPECIFIC EQUIPMENT ACCOMMODATED | CATHODE RAY TUBE |
