NSN 5935-00-111-8490

Part Details | ELECTRICAL PLUG CONNECTOR

5935-00-111-8490 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Alternate Parts: 09X205516, 5935-00-111-8490, 00-111-8490, 5935001118490, 001118490

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59AUG 21, 196800-111-849001938 ( CONNECTOR, PLUG, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

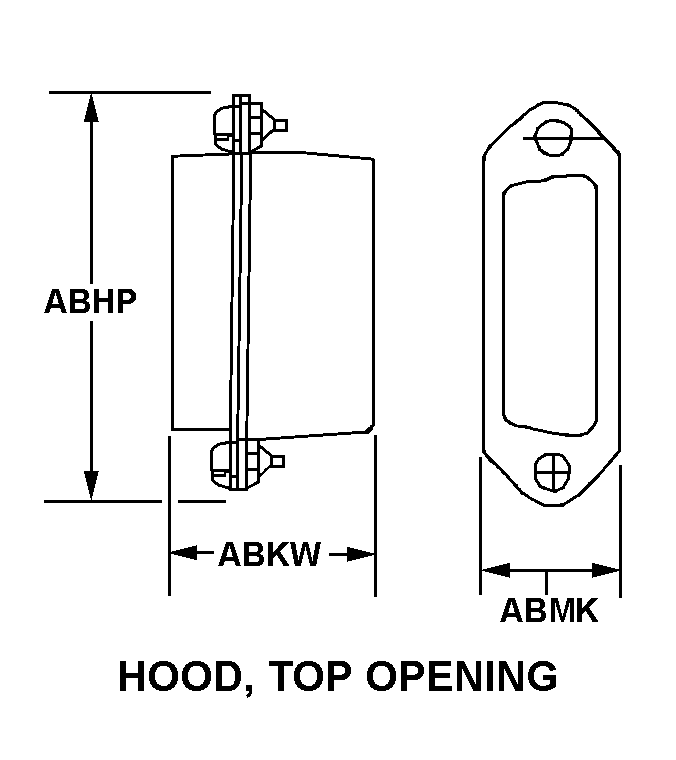

HOOD, TOP OPENING

Cross Reference | NSN 5935-00-111-8490
Part Number Cage Code Manufacturer
09X20551698738HERLEY CHICAGODBA STEWART WARNER ELECTRONICS
Technical Data | NSN 5935-00-111-8490
Characteristic Specifications
BODY STYLE HOOD, TOP OPENING
MATING END QUANTITY1
