NSN 5935-00-111-8546
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-111-8546 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1108511, 11085-11, 805824G1, 8058-24G1, 805824GR, 8058-24GR, 012000425, 01200-0425, 805824G1, 2297390001, 229739-0001, 5935-00-111-8546, 00-111-8546, 5935001118546, 001118546
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 21, 1968 | 00-111-8546 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT, PRESS FIT
TEN HOLE DIMENSION "A" 0.230 INCH

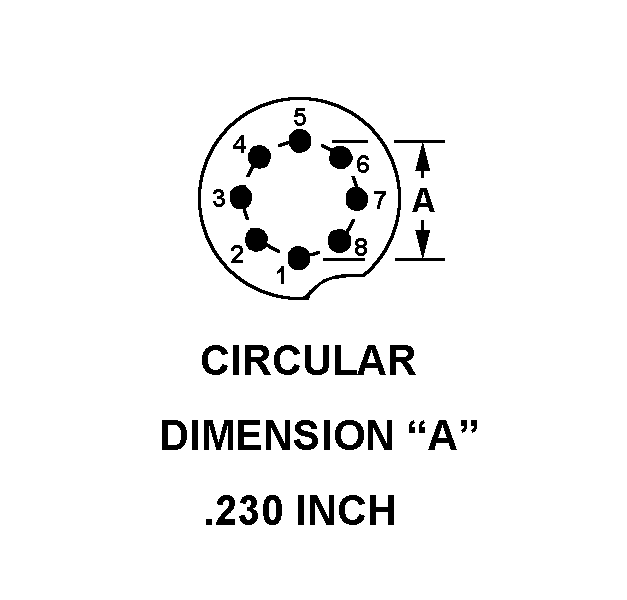

CIRCULAR .230 INCH
Cross Reference | NSN 5935-00-111-8546
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11085-11 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLCDIV DEFENSE ELECTRONIC SYSTEMS |
| 8058-24G1 | 91506 | AUGAT INC |
| 8058-24GR | 91506 | AUGAT INC |
| 01200-0425 | 12848 | SOLRAC II INC |
| 805824G1 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 229739-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
Technical Data | NSN 5935-00-111-8546
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR .230 INCH |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.286 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| OVERALL DIAMETER | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.047 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | TEN HOLE DIMENSION "A" 0.230 INCH |
| POLARIZATION TYPE | SLOT |
| FABRICATION METHOD | MOLDED |
| CONTACT RESISTANCE IN OHMS | 0.009 |
| CAPACITANCE IN PICOFARADS | B1.0$$B0.75 |
| TEMP RATING | -65.0 DEG CELSIUS AND 150.0 DEG CELSIUS |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
