NSN 5935-00-112-4635
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-112-4635 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 2036220016, 203-62-20-016, 20RS1, CJ20RS1, 5345861, 534586-1, 5935-00-112-4635, 00-112-4635, 5935001124635, 001124635
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 24, 1972 | 00-112-4635 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
BOTTOM MOUNT W/METAL SADDLE
ROUND, W/TWO MOUNTING HOLES

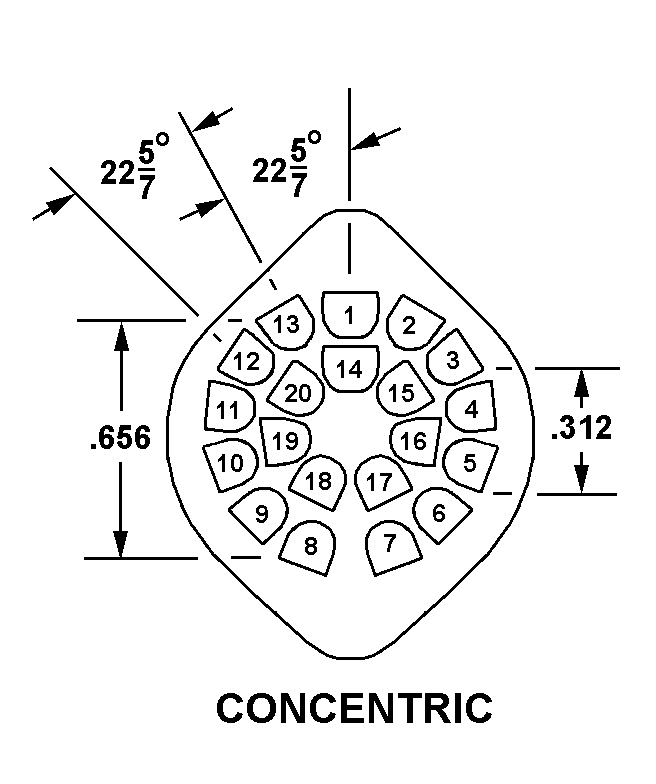

CONCENTRIC
Cross Reference | NSN 5935-00-112-4635
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 203-62-20-016 | 71785 | CINCH CONNECTORS, INC. |
| 20RS1 | 71785 | CINCH CONNECTORS, INC. |
| CJ20RS1 | 71785 | CINCH CONNECTORS, INC. |
| 534586-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-00-112-4635
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 20 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | BOTTOM MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.595 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 1.170 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.094 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 20 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.975 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.312 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.020 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
