NSN 5935-00-112-4637
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-112-4637 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 2045111001, 204-51-11-001, 11PB, 5935-00-112-4637, 00-112-4637, 5935001124637, 001124637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 24, 1972 | 00-112-4637 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES
TOP MOUNT W/RETAINER RING GROOVE
ROUND, BODY

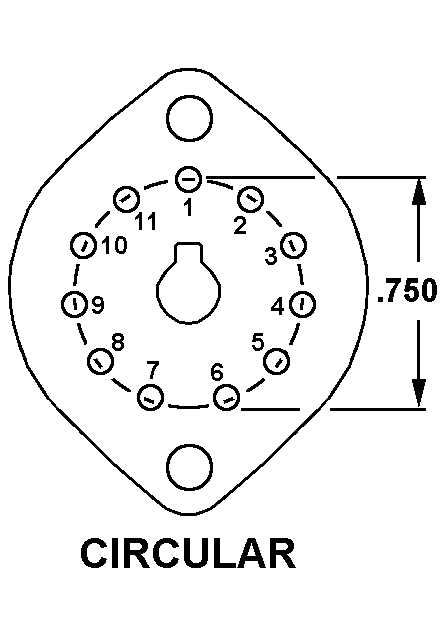

CIRCULAR
Cross Reference | NSN 5935-00-112-4637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-51-11-001 | 71785 | CINCH CONNECTORS, INC. |
| 11PB | 71785 | CINCH CONNECTORS, INC. |
Technical Data | NSN 5935-00-112-4637
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 11 |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | NICKEL |
| BODY STYLE | TOP MOUNT W/RETAINER RING GROOVE |
| OVERALL HEIGHT | 0.969 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.828 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 11 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.158 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
