NSN 5935-00-113-2413
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-113-2413 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 637981, 63798-1, 451116835, 451116-835, H6551310 PN 147, H655-1310 PN 147, S010187119, S0-1018-7119, S010187119, S0-1018-7119, 5316985692 PN 147, 531-6985692 PN 147, GS806H1, 1813439, S010187119, S0-1018-7119, 53818921, 538189-21, P1288301601, P12883-016-01, 105455942, 10545594-2, 5935-00-113-2413, 00-113-2413, 5935001132413, 001132413
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 28, 1968 | 00-113-2413 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

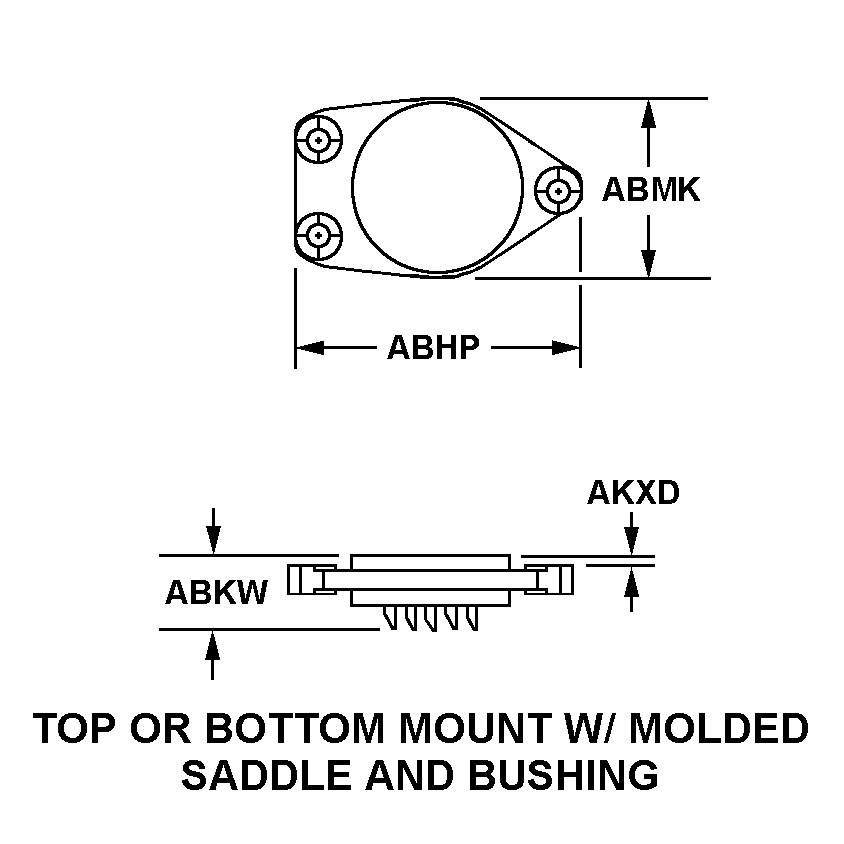

TOP OR BOTTOM MOUNT W/MOLDED SADDLE AND BUSHING

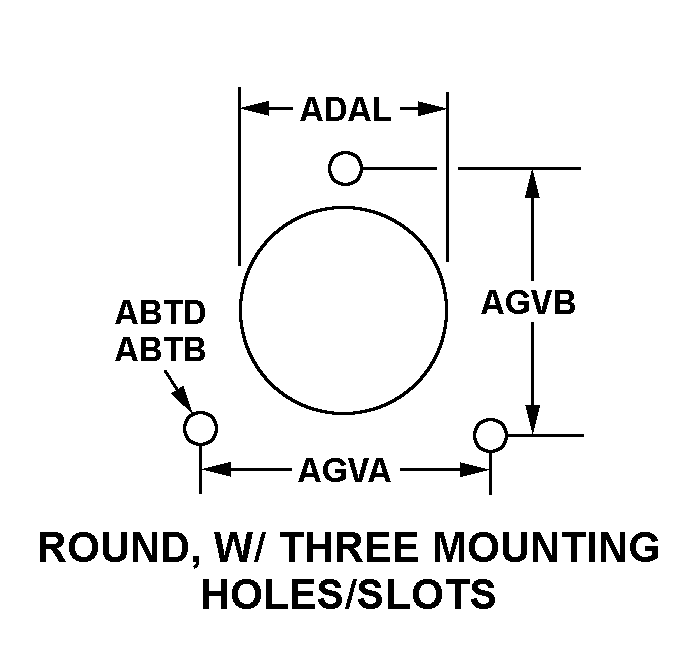

ROUND, W/THREE MOUNTING HOLES/SLOTS

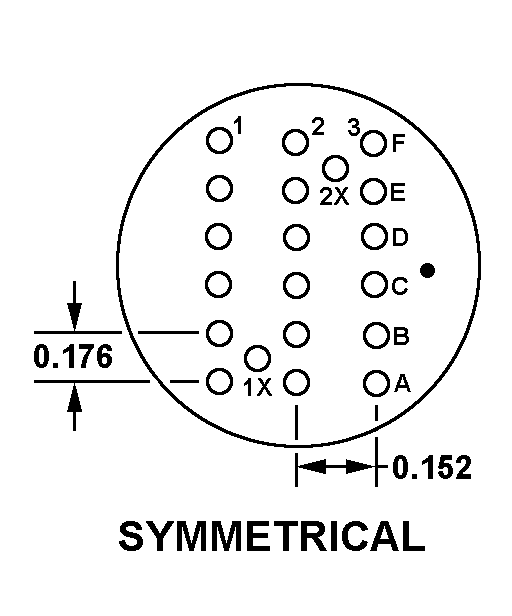

SYMMETRICAL
Cross Reference | NSN 5935-00-113-2413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63798-1 | 82340 | EDO LLC |
| 451116-835 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| H655-1310 PN 147 | 96169 | ELECTRIC BOAT CORPORATION |
| S0-1018-7119 | 81982 | HYDRO-AIRE, INC. |
| S0-1018-7119 | 58657 | LEACH INTERNATIONAL CORPORATIONDBA ESTERLINE POWER SYSTEMS |
| 531-6985692 PN 147 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| GS806H1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 1813439 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| S0-1018-7119 | 04801 | POWER PARAGON INCDBA POWER SYSTEMS GROUP |
| 538189-21 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| P12883-016-01 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10545594-2 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5935-00-113-2413
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 20 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE AND NICKEL |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE AND BUSHING |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.585 INCHES MAXIMUM |
| OVERALL WIDTH | 1.343 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.093 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 20 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.844 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
