NSN 5935-00-113-5091
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-113-5091 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: 5784110001, 57841100-01, 1052733, 105-27-33, C16AL, H16, 5935-00-113-5091, 00-113-5091, 5935001135091, 001135091
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 06, 1968 | 00-113-5091 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

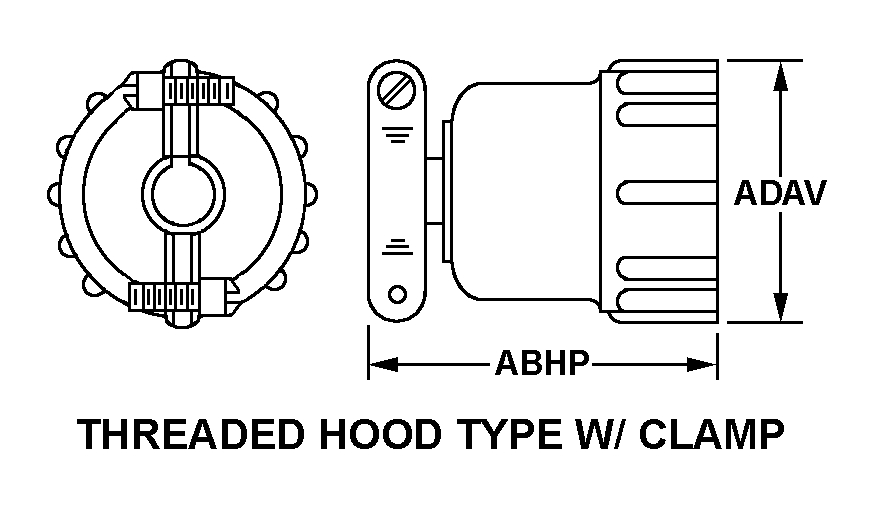

THREADED HOOD TYPE W/CLAMP
Cross Reference | NSN 5935-00-113-5091
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 57841100-01 | 27963 | GENERAL DYNAMICS INFORMATION SYSTEMSINC. |
| 105-27-33 | 84347 | SINGER CO THE KEARFOTT DIV |
| C16AL | 95238 | WINCHESTER ELECTRONICS CORPORATIONDBA CONTINENTAL CONNECTOR |
| H16 | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5935-00-113-5091
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED HOOD TYPE W/CLAMP |
| OVERALL LENGTH | 0.969 INCHES NOMINAL |
| OVERALL DIAMETER | 0.625 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.250 INCHES MAXIMUM |
