NSN 5935-00-114-2520
Part Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-114-2520 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Alternate Parts: 3216874, 5935-00-114-2520, 00-114-2520, 5935001142520, 001142520
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 22, 1973 | 00-114-2520 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

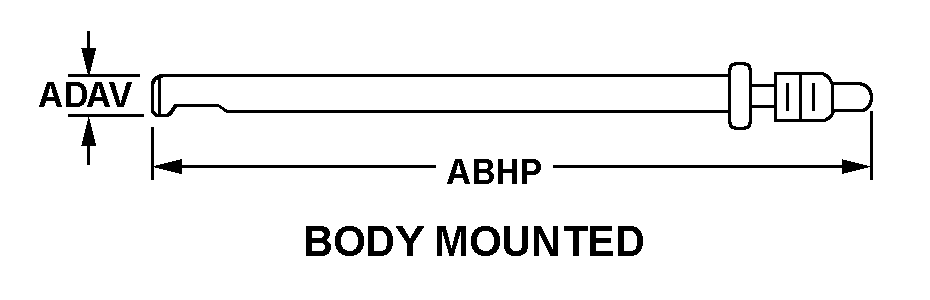

BODY MOUNTED
Cross Reference | NSN 5935-00-114-2520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3216874 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5935-00-114-2520
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BODY MOUNTED |
| OVERALL LENGTH | 5.530 INCHES NOMINAL |
| OVERALL DIAMETER | 0.214 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| SURFACE TREATMENT | PASSIVATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
