NSN 5935-00-114-9817
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-114-9817 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 1232101, 123-210-1, TS1232101, TS123-210-1, 5935-00-114-9817, 00-114-9817, 5935001149817, 001149817
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 11, 1968 | 00-114-9817 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

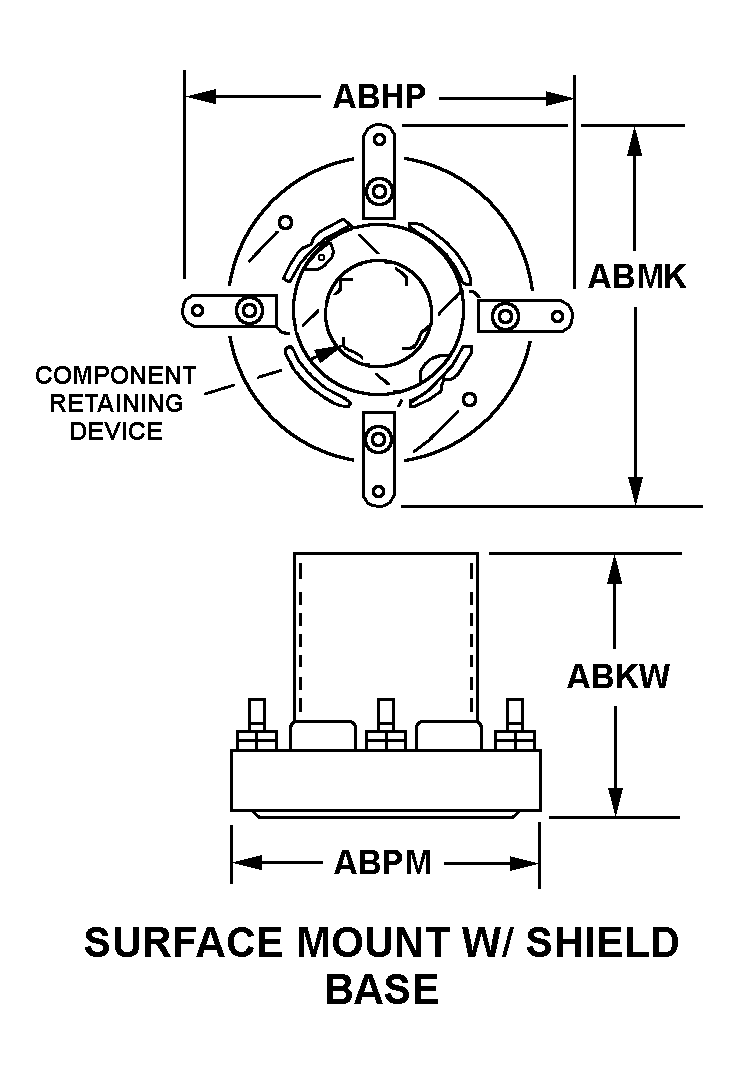

SURFACE MOUNT W/SHIELD BASE
TWO MOUNTING HOLES/SLOTS, IN-LINE

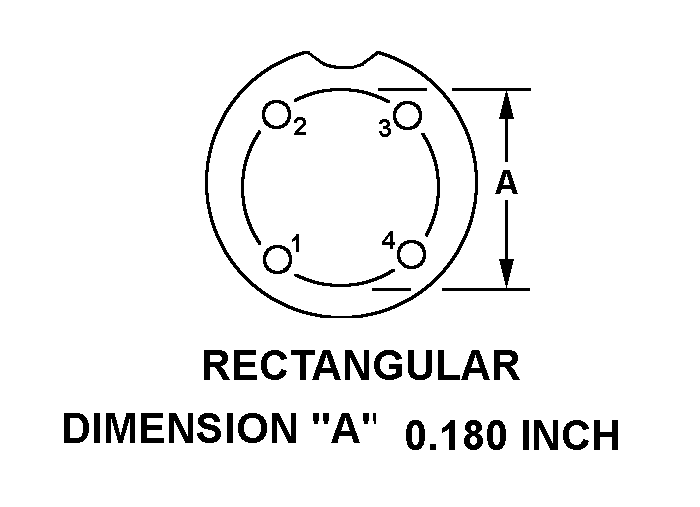

RECTANGULAR
Cross Reference | NSN 5935-00-114-9817
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123-210-1 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
| TS123-210-1 | 82679 | THE TECHNICAL MATERIAL CORPORATIONDBA T M C |
Technical Data | NSN 5935-00-114-9817
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 200.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| BODY STYLE | SURFACE MOUNT W/SHIELD BASE |
| OVERALL HEIGHT | 2.041 INCHES MINIMUM AND 2.081 INCHES MAXIMUM |
| BODY DIAMETER | 2.450 INCHES MINIMUM AND 2.550 INCHES MAXIMUM |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.178 INCHES MINIMUM AND 0.182 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.288 INCHES MINIMUM AND 2.336 INCHES MAXIMUM |
| COMPONENT SHIELD MOUNTING METHOD | BAYONET |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
