Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-115-0002 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: 4657G7, 110409851, 11040985-1, 5935-00-115-0002, 00-115-0002, 5935001150002, 001150002
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 24, 1973 | 00-115-0002 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

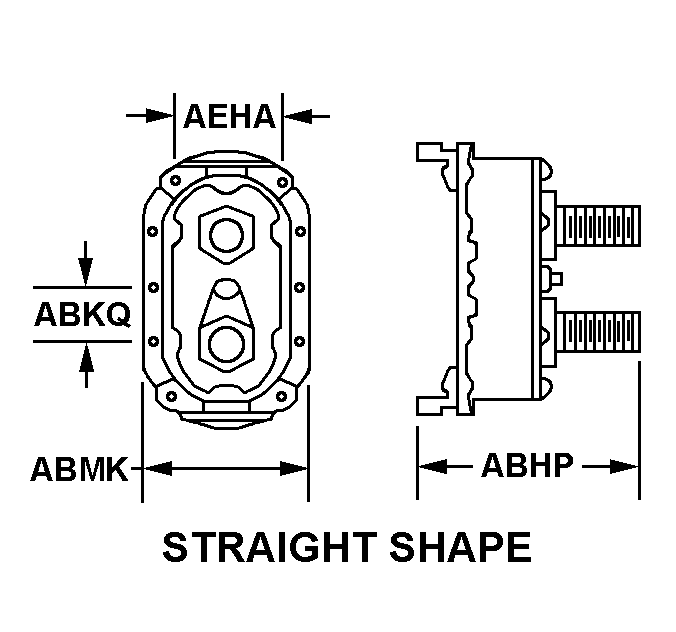

REFERENCE DRAWINGS & PICTURES
STRAIGHT SHAPE
Cross Reference | NSN 5935-00-115-0002
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4657G7 | 80495 | ANDERSON AIRMOTIVE PRODUCTS COMPANY,INC |
| 11040985-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-115-0002
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL LENGTH | 4.271 INCHES MINIMUM AND 4.291 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.597 INCHES MINIMUM AND 1.617 INCHES MAXIMUM |
| OVERALL WIDTH | 1.615 INCHES MINIMUM AND 1.635 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.782 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | LEVER-PIN |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
