NSN 5935-00-116-4896
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-116-4896 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: PT04A106S, PT04A-10-6S, 5935-00-116-4896, 00-116-4896, 5935001164896, 001164896
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 04, 1968 | 00-116-4896 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

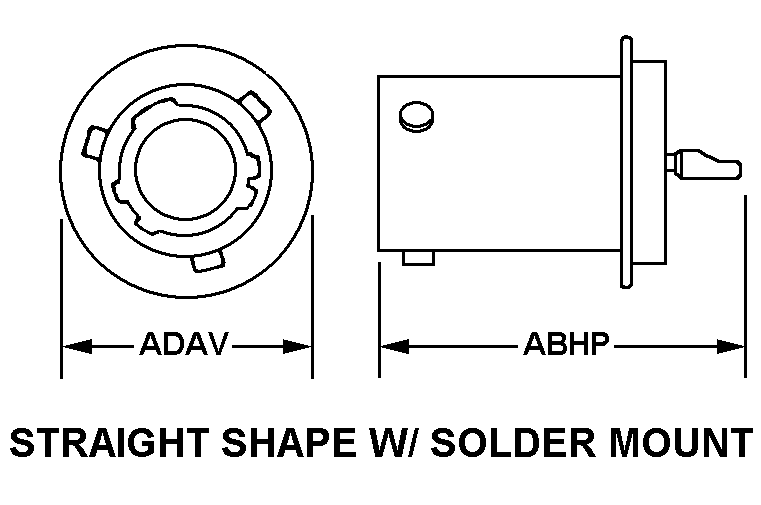

STRAIGHT SHAPE W/SOLDER MOUNT
Cross Reference | NSN 5935-00-116-4896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PT04A-10-6S | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
Technical Data | NSN 5935-00-116-4896
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE W/SOLDER MOUNT |
| OVERALL LENGTH | 1.554 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.042 INCHES MINIMUM AND 1.082 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.006 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
