NSN 5935-00-118-2867
Part Details | ELECTRICAL CONNECTOR BACKSHELL
5935-00-118-2867 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Alternate Parts: 7630858001, 763-0858-001, 5935-00-118-2867, 00-118-2867, 5935001182867, 001182867
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 09, 1968 | 00-118-2867 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

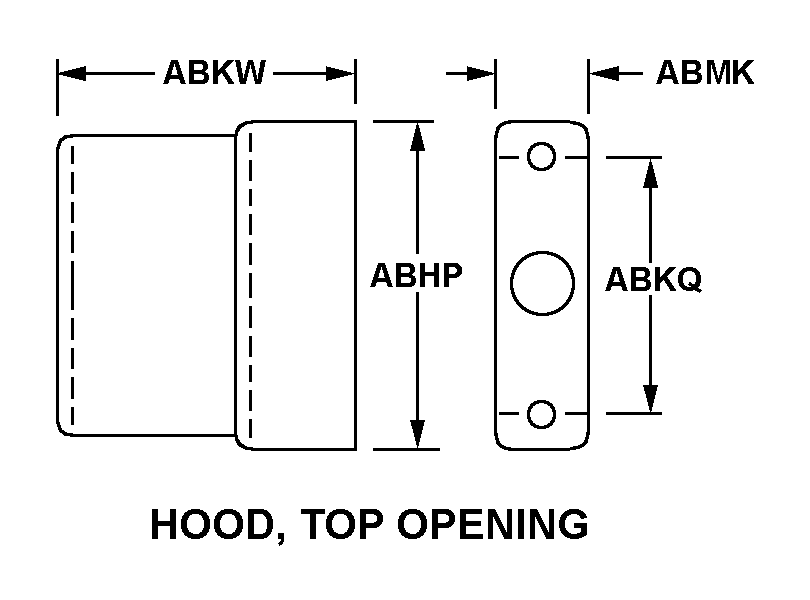

HOOD, TOP OPENING
Cross Reference | NSN 5935-00-118-2867
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 763-0858-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5935-00-118-2867
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD, TOP OPENING |
| OVERALL LENGTH | 3.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 6.313 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.875 INCHES NOMINAL |
