NSN 5935-00-118-5949
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-118-5949 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: KR, 9618931, 96-18931, 5935-00-118-5949, 00-118-5949, 5935001185949, 001185949
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 11, 1968 | 00-118-5949 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

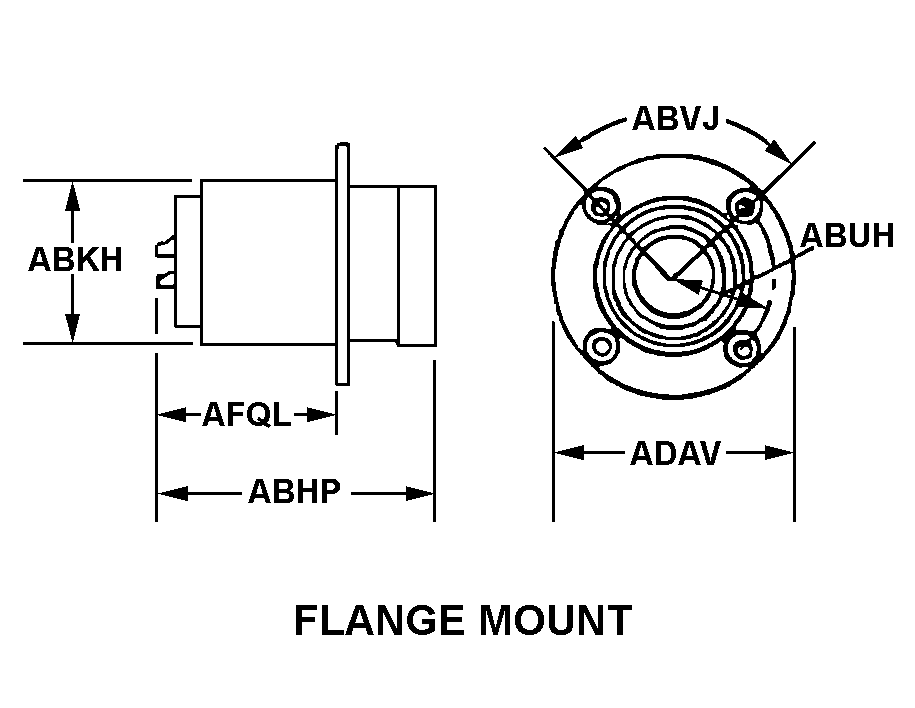

FLANGE MOUNT
Cross Reference | NSN 5935-00-118-5949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KR | 04214 | SGL INDUSTRIES INC SELECTER DIV |
| 96-18931 | 36180 | ULTRA ELECTRONICS MARITIMESYSTEMSINC DBA ULTRA |
Technical Data | NSN 5935-00-118-5949
| Characteristic | Specifications |
|---|---|
| BODY STYLE | FLANGE MOUNT |
| OVERALL LENGTH | 0.390 INCHES NOMINAL |
| BUSHING DIAMETER | 0.870 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 0.234 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.096 INCHES NOMINAL |
