NSN 5935-00-118-7137
Part Details | ELECTRICAL CONNECTOR INSERT
5935-00-118-7137 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.
Alternate Parts: WSS0244S00KX000, 90301712, 903017-12, 5935-00-118-7137, 00-118-7137, 5935001187137, 001187137
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 11, 1968 | 00-118-7137 | 60653 ( INSERT, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

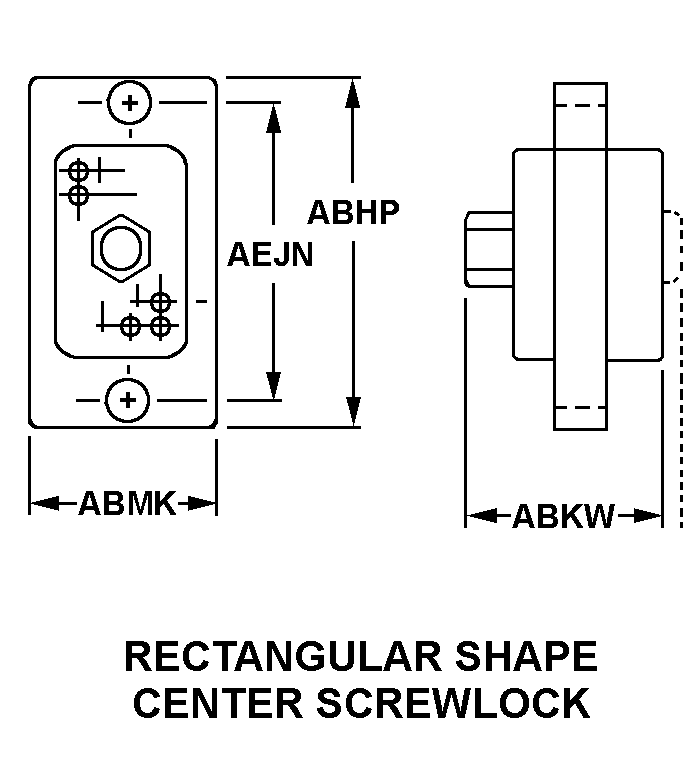

RECTANGULAR SHAPE, CENTER SCREWLOCK
Cross Reference | NSN 5935-00-118-7137
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WSS0244S00KX000 | 73293 | L-3 COMMUNICATIONS ELECTRONTECHNOLOGIES, INC. |
| 903017-12 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 5935-00-118-7137
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR SHAPE, CENTER SCREWLOCK |
| OVERALL LENGTH | 4.128 INCHES NOMINAL |
| OVERALL HEIGHT | 0.462 INCHES NOMINAL |
| OVERALL WIDTH | 0.697 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.808 INCHES NOMINAL |
| POLARIZATION METHOD | POLARIZATION BOSS |
| INSERT POSITION IN DEG | 180.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT |
