NSN 5935-00-118-9959
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-118-9959 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 5K612W0, 2201261010, 220-1261-010, 1241052, 124-105-2, 5935-00-118-9959, 00-118-9959, 5935001189959, 001189959
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 14, 1968 | 00-118-9959 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

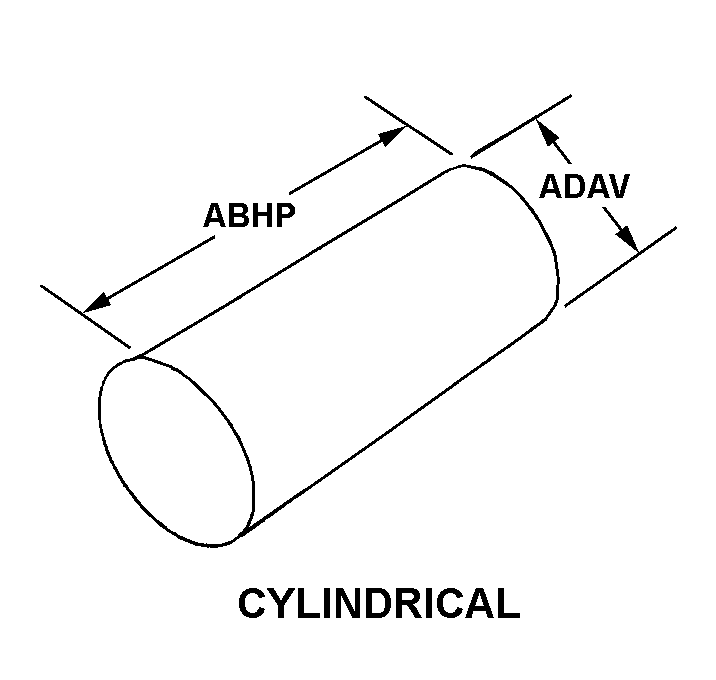

CYLINDRICAL
CIRCULAR
Cross Reference | NSN 5935-00-118-9959
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5K612W0 | 99313 | COMMUNICATIONS & POWER INDUSTRIESLLC |
| 220-1261-010 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 124-105-2 | 74970 | VIKING TECHNOLOGIES, LTD. |
Technical Data | NSN 5935-00-118-9959
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | CYLINDRICAL |
| OVERALL LENGTH | 0.937 INCHES NOMINAL |
| OVERALL DIAMETER | 3.000 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| GROUND TERMINAL TYPE AND QUANTITY | 5 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RIM MOUNTING TOE CLAMPS |
| POLARIZATION TYPE | CONTACT POSITION |
| TEST DATA DOCUMENT | 13499-220-1261-010 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| CAPACITOR QUANTITY | 1 |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.007 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
