NSN 5935-00-119-3251
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-119-3251 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: C38CGD, 5935-00-119-3251, 00-119-3251, 5935001193251, 001193251
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 16, 1968 | 00-119-3251 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

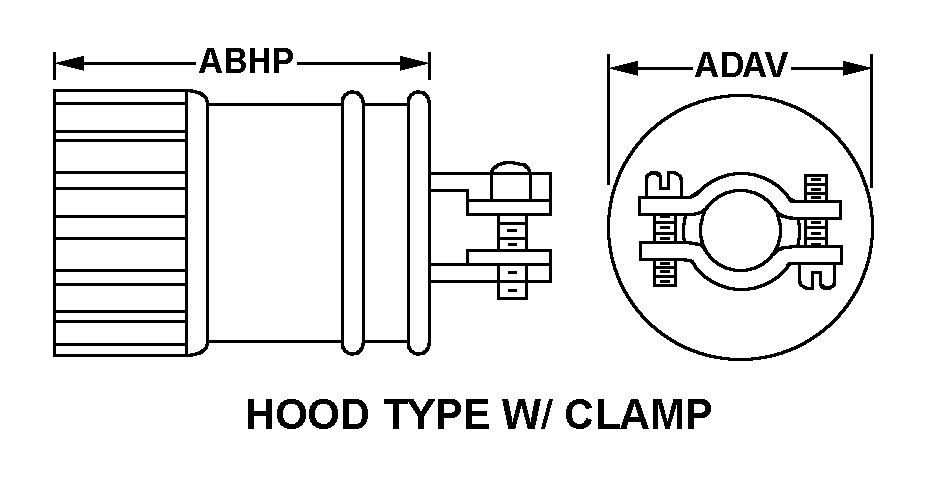

HOOD TYPE W/CLAMP
Cross Reference | NSN 5935-00-119-3251
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C38CGD | 95238 | WINCHESTER ELECTRONICS CORPORATIONDBA CONTINENTAL CONNECTOR |
Technical Data | NSN 5935-00-119-3251
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HOOD TYPE W/CLAMP |
| OVERALL LENGTH | 0.840 INCHES NOMINAL |
| OVERALL DIAMETER | 0.650 INCHES NOMINAL |
| MATERIAL | GLASS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.297 INCHES MAXIMUM |
