NSN 5935-00-124-2917
Part Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-124-2917 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: XLR332A176, XLR3-32A176, XLR332A106, XLR3-32A106, XLA332A106, XLA-3-32-A106, 5935-00-124-2917, 00-124-2917, 5935001242917, 001242917
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 04, 1973 | 00-124-2917 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

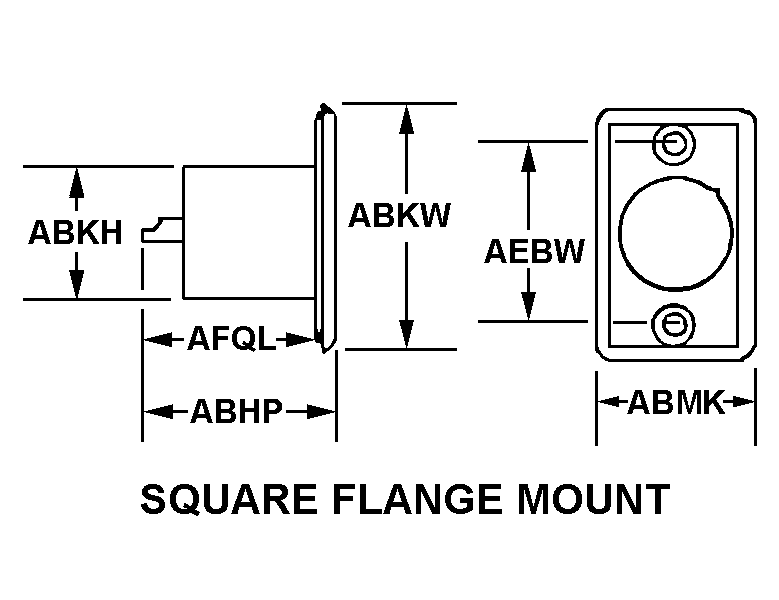

SQUARE FLANGE MOUNT
Cross Reference | NSN 5935-00-124-2917
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| XLR3-32A176 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| XLR3-32A106 | 71468 | ITT CORPORATIONDBA I T T CANNON |
| XLA-3-32-A106 | 71468 | ITT CORPORATIONDBA I T T CANNON |
Technical Data | NSN 5935-00-124-2917
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SQUARE FLANGE MOUNT |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| BUSHING DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.062 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 1.000 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY AND STEEL |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.003 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
