NSN 5940-00-110-5880
Part Details | CONDUCTOR SPLICE
5940-00-110-5880 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: 2544, 5940-00-110-5880, 00-110-5880, 5940001105880, 001105880
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 09, 1968 | 00-110-5880 | 00137 ( SPLICE, CONDUCTOR ) |
REFERENCE DRAWINGS & PICTURES

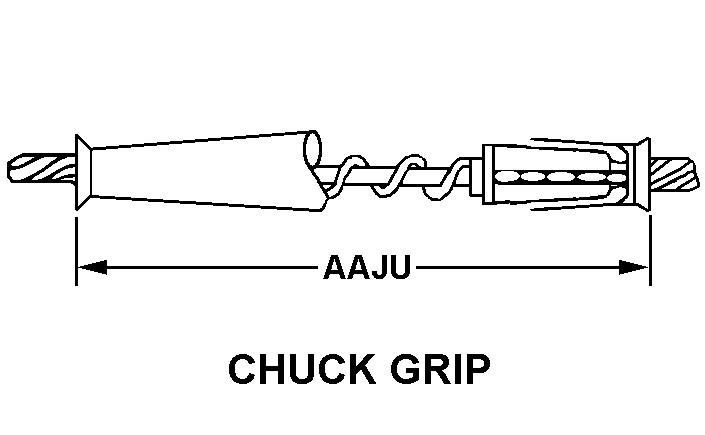

CHUCK GRIP
Cross Reference | NSN 5940-00-110-5880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2544 | 82386 | JAIDINGER MFG. CO., INC.DBA JAICO PRODUCTS |
Technical Data | NSN 5940-00-110-5880
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | CHUCK GRIP |
| OVERALL LENGTH | 2.375 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | AGA000E0.100 SILVER |
| PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACES SILVER |
