NSN 5940-00-284-4978
Part Details | TERMINAL BOX
5940-00-284-4978 An enclosure which includes, mounts and protects one or more terminals and/or terminal boards. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings. For boxes which include combinations of different electrical devices such as terminals and/or terminal boards, fuseholders, switches, jacks, circuit breakers, connectors and the like, see DISTRIBUTION BOX. For boxes which are designed to mount, but which do not include terminals and/or terminal boards, see JUNCTION BOX. Excludes TERMINAL BOARD ASSEMBLY. See also CHAMBER, CABLE TERMINAL; and INTERCONNECTING CABINET.
Alternate Parts: 9S4427LALT10, 5940-00-284-4978, 00-284-4978, 5940002844978, 002844978
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-4978 | 00452 ( TERMINAL BOX ) |
REFERENCE DRAWINGS & PICTURES

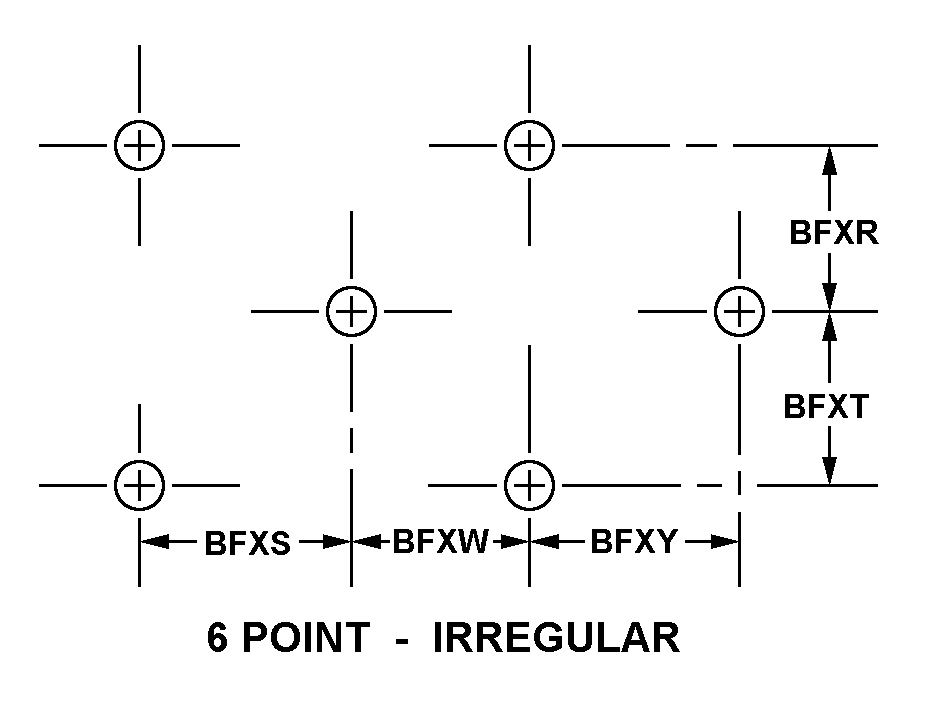

6 POINT-IRREGULAR
RECTANGULAR, FLUSH MOUNTING
Cross Reference | NSN 5940-00-284-4978
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S4427LALT10 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5940-00-284-4978
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | RECTANGULAR, FLUSH MOUNTING |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 80 SCREW |
| OVERALL DEPTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 16.625 INCHES NOMINAL |
| OVERALL WIDTH | 9.500 INCHES NOMINAL |
| SURFACE TREATMENT | ENAMEL |
| STANDARD MOUNTING PATTERN DESIGNATOR | 6 POINT-IRREGULAR |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | GENERAL PURPOSE-NEMA TYPE 1 |
| FEATURES PROVIDED | COVER |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY MATERAL REQUIREMENT |
