NSN 5940-00-611-3945
Part Details | QUICK DISCONNECT SPLICE SET
5940-00-611-3945 A group of items consisting of mating terminals, or terminals with a joining device, designed to expedite or simplify the connection of two or more electrical wires without bringing them to a fixed point such as a binding post or terminal. It allows for simple, rapid separation of the spliced wires without the use of tools. May include an insulation sleeve. See also SPLICE, CONDUCTOR.
Alternate Parts: M68523, M6852-3, AN7533, AN753-3, AN735B2, AN753B2, M68523, M6852-3, MILS6852, MIL-S-6852, MILC834138, MIL-C-83413/8, M68523, M6852-3, RB9988, RB9862, M68523, M6852-3, M6852, 9550840000, AS6852, M68523, M6852-3, 5940-00-611-3945, 00-611-3945, 5940006113945, 006113945
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 19, 1969 | 00-611-3945 | 61105 ( SPLICE SET, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
PLUG COUPLER

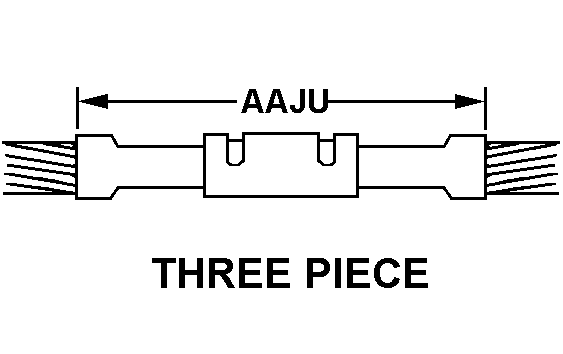

THREE PIECE
Cross Reference | NSN 5940-00-611-3945
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M6852-3 | 0XPA4 | A.F. TECHNOLOGIES, INC. |
| AN753-3 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| AN735B2 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| AN753B2 | 80059 | JOINT AIRCRAFT COMMITTEE |
| M6852-3 | K0668 | LEONARDO MW LTD |
| MIL-S-6852 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-C-83413/8 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M6852-3 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| RB9988 | 1GK47 | R & B ELECTRONICS, INC. |
| RB9862 | 1GK47 | R & B ELECTRONICS, INC. |
| M6852-3 | 1GK47 | R & B ELECTRONICS, INC. |
| M6852 | 1GK47 | R & B ELECTRONICS, INC. |
| 9550840000 | F0228 | SAFRAN HELICOPTER ENGINES |
| AS6852 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M6852-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 5940-00-611-3945
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | THREE PIECE |
| OVERALL LENGTH | 1.500 INCHES |
| QUICK DISCONNECT STYLE | PLUG COUPLER |
| MAJOR PLUG DIAMETER ACCOMMODATED | 0.186 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 SILVER GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | O/A SURFACES SILVER |
