NSN 5940-00-665-4501
Part Details | LUG TERMINAL
5940-00-665-4501 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Alternate Parts: 594411, RC5240, 5940-00-665-4501, 00-665-4501, 5940006654501, 006654501
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-665-4501 | 00746 ( TERMINAL, LUG ) |
REFERENCE DRAWINGS & PICTURES

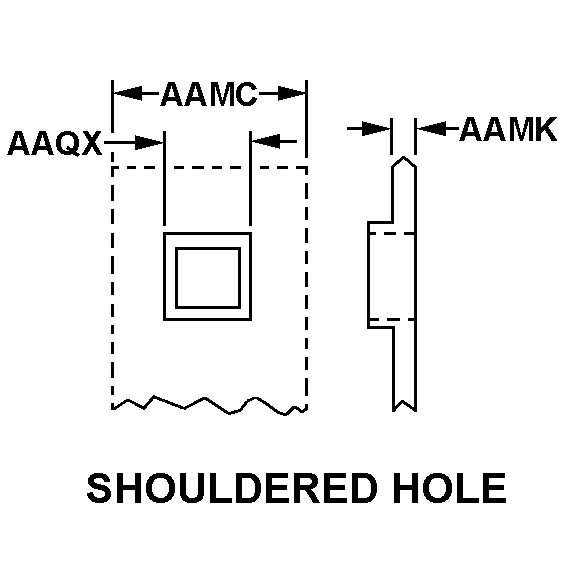

SHOULDERED HOLE
SOLDER/SOLDERLESS
Cross Reference | NSN 5940-00-665-4501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 594411 | 12204 | DAIMLER CHRYSLER |
| RC5240 | 27895 | HILL E VERNON INC |
Technical Data | NSN 5940-00-665-4501
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SOLDER/SOLDERLESS |
| OVERALL LENGTH | 1.188 INCHES |
| OVERALL WIDTH | 0.625 INCHES |
| MATERIAL THICKNESS | 0.095 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 11 AWG |
| MOUNTING METHOD STYLE | SHOULDERED HOLE |
| MOUNTING HOLE DIAMETER | 0.391 INCHES |
| MOUNTING TONGUE WIDTH | 0.625 INCHES |
| MOUNTING FACILITY THICKNESS | 0.095 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
