NSN 5940-00-709-0038
Part Details | LUG TERMINAL
5940-00-709-0038 A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. It has provisions for attachment of wire(s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. For post like terminals, see TERMINAL STUD. Excludes CLIP, ELECTRICAL; TERMINAL, QUICK DISCONNECT and TERMINAL FEEDTHRU.
Alternate Parts: 158770, 158770, 158770, 5940-00-709-0038, 00-709-0038, 5940007090038, 007090038
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-709-0038 | 00746 ( TERMINAL, LUG ) |
REFERENCE DRAWINGS & PICTURES

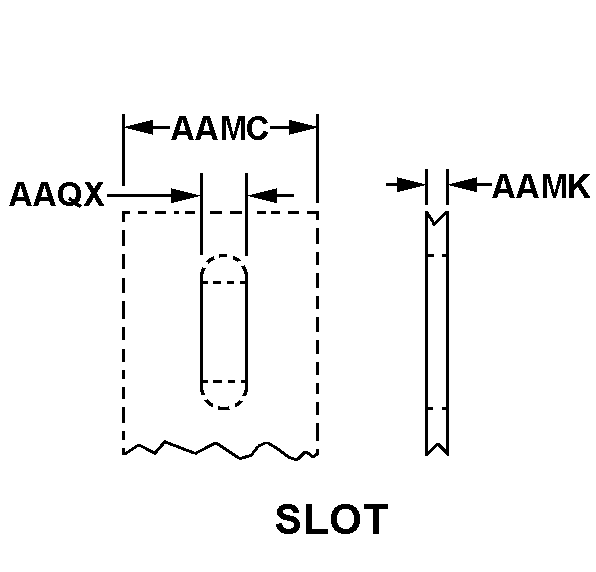

SLOT
SOLDER, ANGULAR
Cross Reference | NSN 5940-00-709-0038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 158770 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 158770 | 70408 | AT AND T CORP |
| 158770 | 57712 | TELEMECHANICS INC |
Technical Data | NSN 5940-00-709-0038
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SOLDER, ANGULAR |
| OVERALL LENGTH | 0.172 INCHES |
| OVERALL WIDTH | 0.125 INCHES |
| ANGLE | 45.0 DEGREES |
| MOUNTING METHOD STYLE | SLOT |
| MOUNTING TONGUE WIDTH | 0.125 INCHES |
| MOUNTING FACILITY THICKNESS | 0.016 INCHES |
| MOUNTING SLOT WIDTH | 0.062 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
