NSN 5940-00-712-6404
Part Details | QUICK DISCONNECT TERMINAL
5940-00-712-6404 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: K5919N, 2076443, 320555, 106074931, 10607493-1, 5940-00-712-6404, 00-712-6404, 5940007126404, 007126404
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-712-6404 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

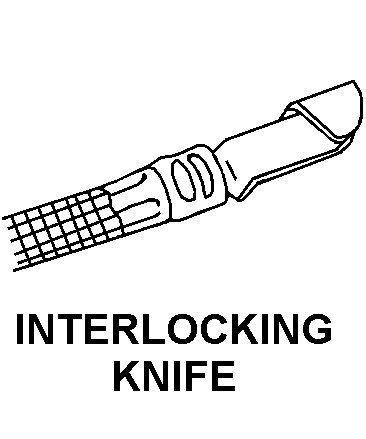

INTERLOCKING KNIFE
INTERLOCKING
Cross Reference | NSN 5940-00-712-6404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K5919N | 14726 | ELECTRO-TERM INC.DBA ELECTRO-TERM/HOLLINGSWORTH - |
| 2076443 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 320555 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 10607493-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5940-00-712-6404
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERLOCKING |
| OVERALL LENGTH | 0.878 INCHES |
| MATERIAL THICKNESS | 0.031 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 16 AWG |
| QUICK DISCONNECT STYLE | INTERLOCKING KNIFE |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | RED |
