NSN 5940-00-782-4970
Part Details | QUICK DISCONNECT TERMINAL
5940-00-782-4970 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 6819319, 6819-319, 6819319, 6819-319, 5940-00-782-4970, 00-782-4970, 5940007824970, 007824970
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 05, 1968 | 00-782-4970 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

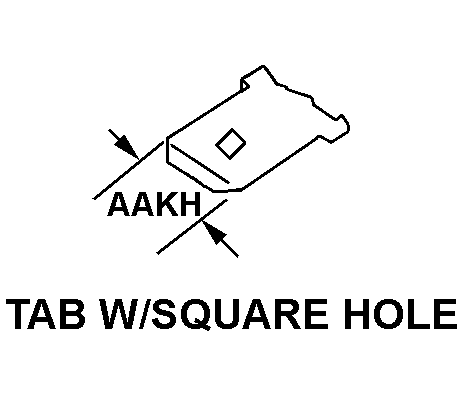

TAB W/SQUARE HOLE
EXTERNAL
Cross Reference | NSN 5940-00-782-4970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6819-319 | 80294 | BOURNS INSTRUMENTS INC |
| 6819-319 | 11871 | RECON/OPTICAL, INC. |
Technical Data | NSN 5940-00-782-4970
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | EXTERNAL |
| OVERALL LENGTH | 0.343 INCHES |
| MATERIAL THICKNESS | 0.020 INCHES |
| QUICK DISCONNECT STYLE | TAB W/SQUARE HOLE |
| TAB WIDTH | 0.187 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| SPECIAL FEATURES | ITEM HAS THREE IDENTICAL MALE TABS |
