NSN 5940-00-786-5548
Part Details | QUICK DISCONNECT TERMINAL SET
5940-00-786-5548 A group of items which, when combined, conform with the definition of TERMINAL, LUG or TERMINAL, STUD. It also provides the additional feature of allowing the conductor accommodation facility(ies) of the lug or stud to be simply and rapidly separated from the mounted (fixed) position of the lug or stud without the use of tools. See also TERMINAL, LUG and TERMINAL, STUD.
Alternate Parts: 2762003P55, 276-2003P55, 1002616P, 100-2616P, 5940-00-786-5548, 00-786-5548, 5940007865548, 007865548
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-786-5548 | 61181 ( TERMINAL SET, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
PIN

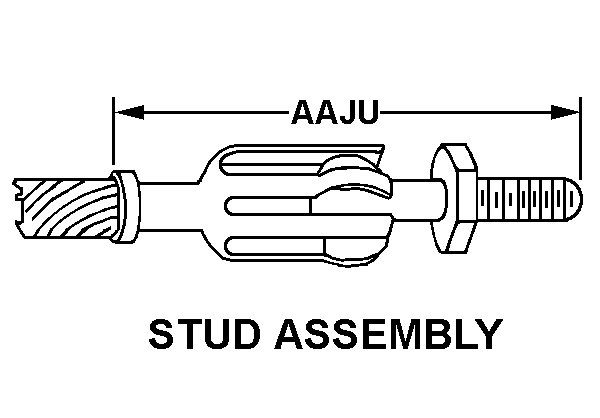

STUD ASSEMBLY
Cross Reference | NSN 5940-00-786-5548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 276-2003P55 | 99687 | RAYTHEON CO EQUIPMENT DEVELOPMENTLAB |
| 100-2616P | 81312 | WINCHESTER ELECTRONICS CORPORATIONDBA KINGS ELECTRONICS |
Technical Data | NSN 5940-00-786-5548
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | STUD ASSEMBLY |
| OVERALL LENGTH | 0.766 INCHES |
| QUICK DISCONNECT STYLE | PIN |
| MINOR PLUG DIAMETER | 0.040 INCHES |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | O/A CONDUCTOR ACCOMMODATION GOLD |
