NSN 5940-00-823-1761
Part Details | QUICK DISCONNECT TERMINAL
5940-00-823-1761 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 731762, 7-31762, 31762, 8134567, 5940-00-823-1761, 00-823-1761, 5940008231761, 008231761
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-823-1761 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

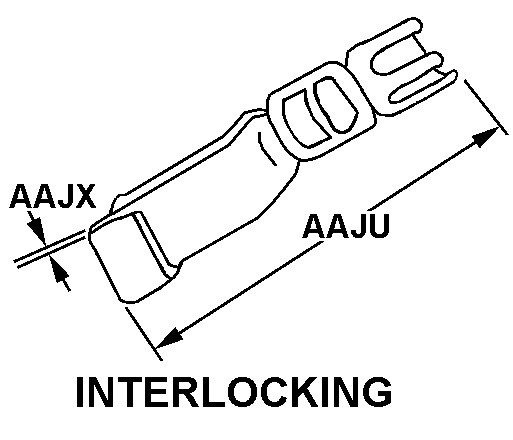

INTERLOCKING
Cross Reference | NSN 5940-00-823-1761
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7-31762 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 31762 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
| 8134567 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5940-00-823-1761
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERLOCKING |
| OVERALL LENGTH | 0.734 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
