NSN 5940-00-837-8044
Part Details | TERMINAL BOARD
5940-00-837-8044 An item consisting of insulating material, which is specifically designed to have fastened thereon, or on which are fastened terminal(s), such as screws, solder lugs, solder studs, solderless connectors, clips, and the like. It is usually used for junctions or terminations of wire or cable assemblies. It does not include items as defined above with parts, such as resistors and capacitors mounted thereon. Do not use if a more specific name exists, such as FUSEHOLDER; HOLDER, RESISTOR; FANNING STRIP; CONTACT ASSEMBLY, ELECTRICAL; JACK ASSEMBLY, TIP; CHAMBER, CABLE TERMINAL; PANEL (2) (as modified); CONNECTOR (as modified). Excludes TERMINAL, STUD; TERMINAL, FEEDTHRU, INSULATED; POST, BINDING, ELECTRICAL; and CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT. For items having printed electrical conductor paths, see PRINTED WIRING BOARD.
Alternate Parts: AA591251711TB9, A-A-59125/1711TB9, AA59125, A-A-59125, 341A3625001, 341A3625P1, 341A3625-P1, MILT16784, 11TB9, 564101PC57, NGX1934818, NGX19348-18, 90002650573214PC57, 900026505-73214PC57, 11TB9M, 11TB9, 5940-00-837-8044, 00-837-8044, 5940008378044, 008378044
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-837-8044 | 00404 ( TERMINAL BOARD ) |
REFERENCE DRAWINGS & PICTURES

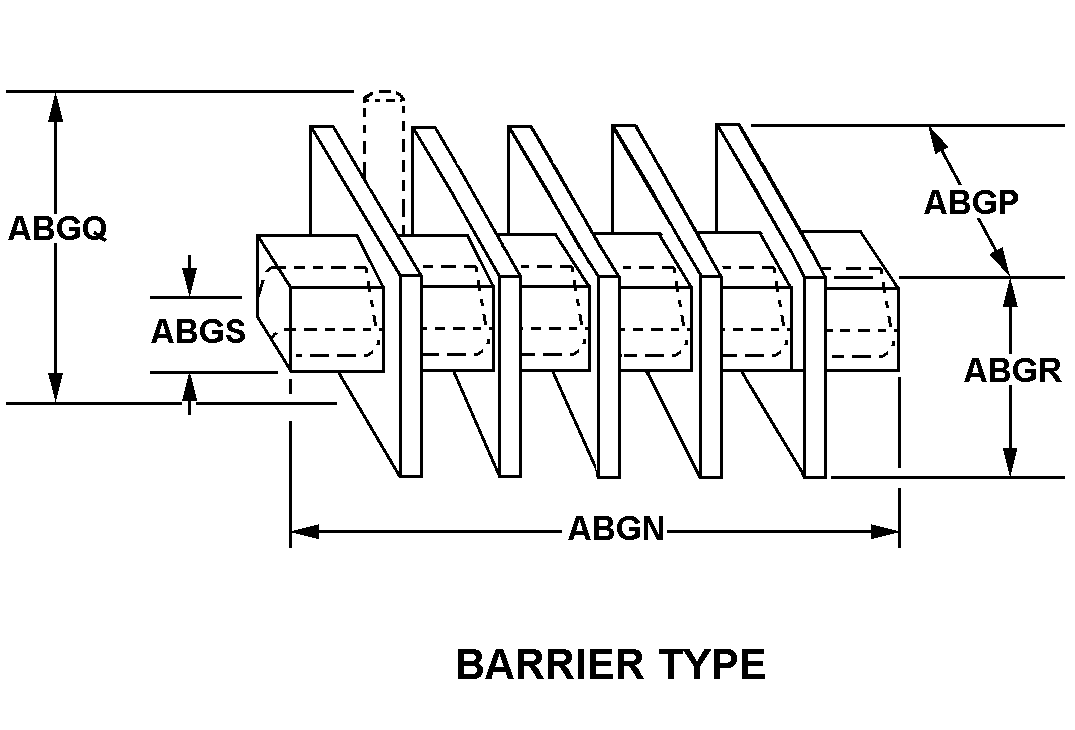

BARRIER TYPE
Cross Reference | NSN 5940-00-837-8044
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59125/1711TB9 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-59125 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| 341A3625001 | 30464 | GENERAL ELECTRIC COLARGE STEAM TURBINE-GENERATOR DEPT |
| 341A3625-P1 | 30464 | GENERAL ELECTRIC COLARGE STEAM TURBINE-GENERATOR DEPT |
| MILT16784 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 11TB9 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 564101PC57 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| NGX19348-18 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 900026505-73214PC57 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 11TB9M | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 11TB9 | 88223 | WICKES MFG COELECTRICAL DIV |
Technical Data | NSN 5940-00-837-8044
| Characteristic | Specifications |
|---|---|
| BODY STYLE | BARRIER TYPE |
| BOARD CONSTRUCTION | HOLLOW CONSTRUCTION WITHOUT INSULATED STRIP |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOT |
| BOARD OVERALL LENGTH | 4.625 INCHES |
| BOARD OVERALL WIDTH | 0.625 INCHES |
| BOARD OVERALL HEIGHT | 1.125 INCHES |
| BOARD HEIGHT EXCLUDING TERMINALS | 1.000 INCHES |
| BASE THICKNESS | 0.500 INCHES |
| TERMINAL PATTERN ARRANGEMENT | SINGLE ROW |
| TERMINAL ROW QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.375 INCHES |
| TERMINAL DESIGN | VERTICAL FEEDTHRU |
| FEEDTHRU TERMINAL QUANTITY | 9 SINGLE COMBINATION |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.125 INCHES |
| DISTANCE FROM BOTTOM EDGE OF TERMINAL BOARD TO CENTER OF MOUNTING HOLE | 0.312 INCHES |
| DISTANCE FROM LEFT EDGE OF TERMINAL BOARD TO CENTER OF FIRST MOUNTING FACILITY | 0.281 INCHES |
| MOUNTING SLOT WIDTH | 0.173 INCHES |
| MOUNTING SLOT LENGTH | 0.218 INCHES |
| CURRENT RATING IN AMPS | 40.0 |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 2.2 |
| SPECIAL MARKINGS | 1 THRU 9 |
