NSN 5940-00-843-1588
Part Details | QUICK DISCONNECT TERMINAL
5940-00-843-1588 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 879552R1, 188396R1, 5940-00-843-1588, 00-843-1588, 5940008431588, 008431588
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 30, 1966 | 00-843-1588 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

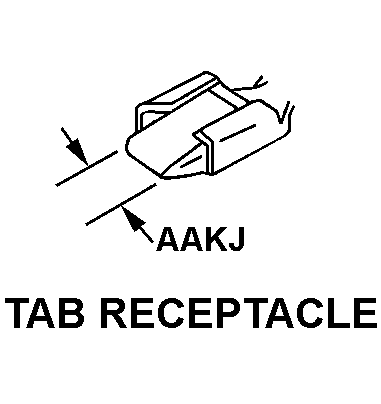

TAB RECEPTACLE
INTERNAL
Cross Reference | NSN 5940-00-843-1588
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 879552R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 188396R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 5940-00-843-1588
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERNAL |
| OVERALL LENGTH | 0.812 INCHES |
| MATERIAL THICKNESS | 0.031 INCHES |
| QUICK DISCONNECT STYLE | TAB RECEPTACLE |
| WIDTH OF TAB ACCOMMODATED | 0.281 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
