NSN 5940-00-845-4106
Part Details | QUICK DISCONNECT TERMINAL
5940-00-845-4106 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 461160C91, 103232H, 997097R91 ITEM 10, 997097-R91 ITEM 10, 99707R91 ITEM 10, 99707-R91 ITEM 10, 86817R1, 7814453, 34482, 5940-00-845-4106, 00-845-4106, 5940008454106, 008454106
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 30, 1966 | 00-845-4106 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
PLUG RECEPTACLE

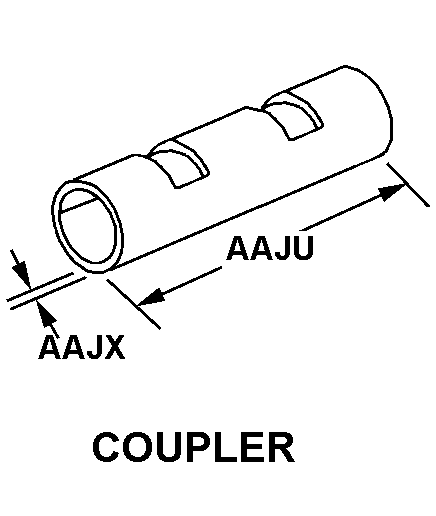

COUPLER
Cross Reference | NSN 5940-00-845-4106
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 461160C91 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 103232H | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 997097-R91 ITEM 10 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 99707-R91 ITEM 10 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 86817R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 7814453 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 34482 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5940-00-845-4106
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | COUPLER |
| OVERALL LENGTH | 1.062 INCHES |
| MATERIAL THICKNESS | 0.020 INCHES |
| QUICK DISCONNECT STYLE | PLUG RECEPTACLE |
| MAJOR PLUG DIAMETER ACCOMMODATED | 0.040 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
