NSN 5940-00-849-3869
Part Details | ELECTRICAL BINDING POST
5940-00-849-3869 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Alternate Parts: 208, 208, 84167151, 8416715-1, 84167151, 8416715-1, 0446384, 044638-4, 5940-00-849-3869, 00-849-3869, 5940008493869, 008493869
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-849-3869 | 00883 ( POST, BINDING, ELECTRICAL ) |

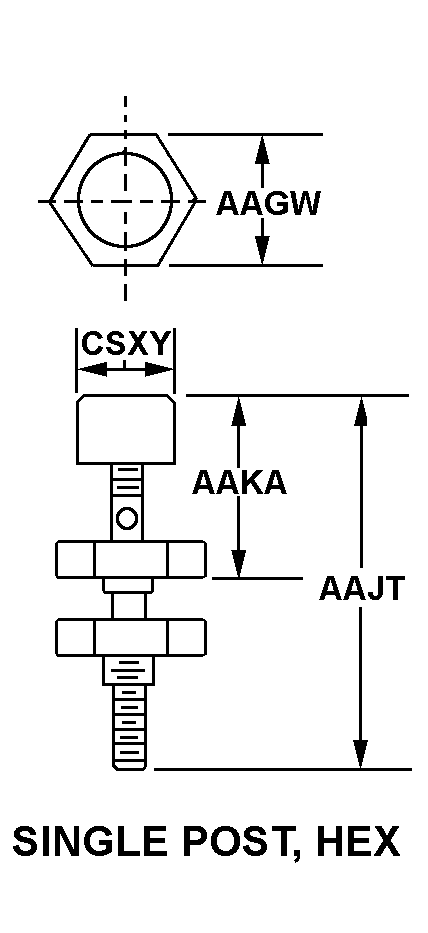

REFERENCE DRAWINGS & PICTURES
STUD
SINGLE POST, HEX
Cross Reference | NSN 5940-00-849-3869
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 208 | 83330 | DIALIGHT CORPORATION |
| 208 | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
| 8416715-1 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 8416715-1 | 02734 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 044638-4 | 89305 | SIMMONDS PRECISION PRODUCTS INC |
Technical Data | NSN 5940-00-849-3869
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SINGLE POST, HEX |
| WIDTH ACROSS FLATS | 0.312 INCHES |
| OVERALL HEIGHT | 1.469 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 0.719 INCHES |
| CAP OUTSIDE DIAMETER | 0.312 INCHES |
| MOUNTING METHOD STYLE | STUD |
| THREAD LENGTH | 0.625 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.138 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED CAPS WITH UNINSULATED STUDS |
| FEATURES PROVIDED | MOUNTING HARDWARE |
