NSN 5940-00-861-2566
Part Details | QUICK DISCONNECT TERMINAL
5940-00-861-2566 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 3929, 42555219, 4255521-9, 244058R1, 321235, 5940-00-861-2566, 00-861-2566, 5940008612566, 008612566
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1962 | 00-861-2566 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

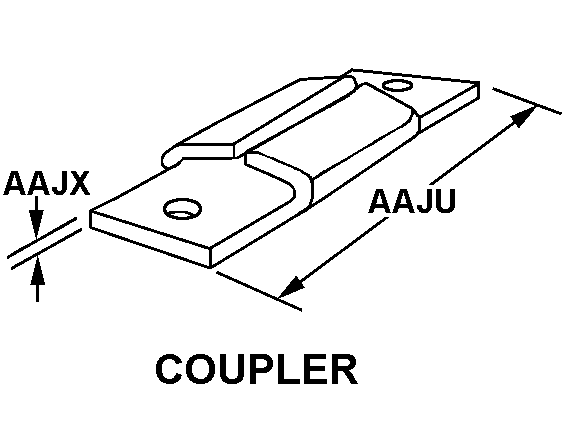

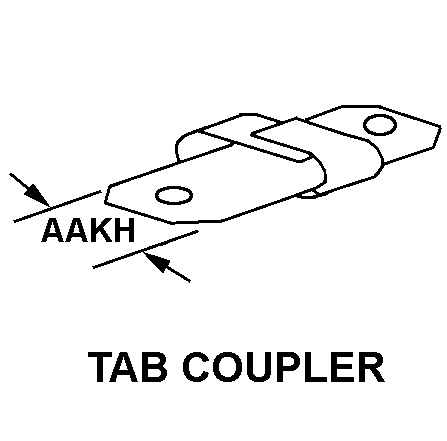

TAB COUPLER
COUPLER
Cross Reference | NSN 5940-00-861-2566
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3929 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 4255521-9 | 0AHU0 | KALMAR AC INC |
| 244058R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 321235 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5940-00-861-2566
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | COUPLER |
| OVERALL LENGTH | 2.093 INCHES |
| MATERIAL THICKNESS | 0.032 INCHES |
| QUICK DISCONNECT STYLE | TAB COUPLER |
| TAB WIDTH | 0.250 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | WHITE |
