NSN 5940-00-871-8799
Part Details | CONDUCTOR SPLICE
5940-00-871-8799 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: 13217E09431, 13217E0943-1, 2007, 9183298, 5940-00-871-8799, 00-871-8799, 5940008718799, 008718799
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-871-8799 | 00137 ( SPLICE, CONDUCTOR ) |
REFERENCE DRAWINGS & PICTURES

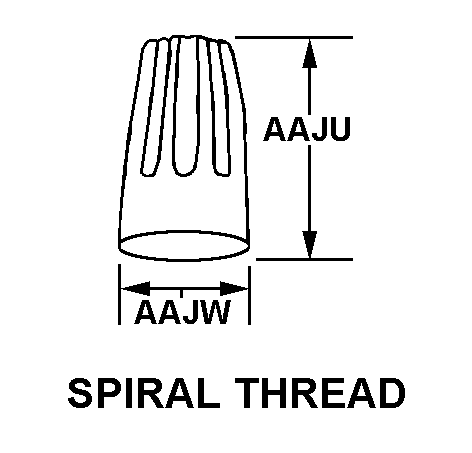

SPIRAL THREAD
Cross Reference | NSN 5940-00-871-8799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13217E0943-1 | 97403 | CECOM LR CENTER |
| 2007 | 89020 | TYCO ELECTRONICS/AGASTAT RELAYS |
| 9183298 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5940-00-871-8799
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SPIRAL THREAD |
| OVERALL LENGTH | 1.094 INCHES |
| OVERALL DIAMETER | 0.531 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
