NSN 5940-00-877-9111
Part Details | QUICK DISCONNECT TERMINAL
5940-00-877-9111 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: MS274293, MS27429-3, MS274293, MS27429-3, AS27429, QD1210, QD12-10, RC23, 5940-00-877-9111, 00-877-9111, 5940008779111, 008779111
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 28, 1967 | 00-877-9111 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

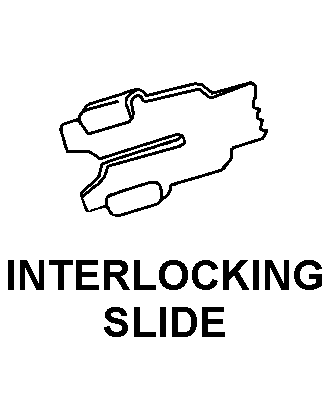

INTERLOCKING SLIDE
INTERNAL
Cross Reference | NSN 5940-00-877-9111
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27429-3 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MS27429-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS27429 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| QD12-10 | 18762 | SUPERIOR FUSE & MANUFACTURING CO INC |
| RC23 | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5940-00-877-9111
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERNAL |
| OVERALL LENGTH | 1.300 INCHES |
| MATERIAL THICKNESS | 0.040 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 10 AWG |
| QUICK DISCONNECT STYLE | INTERLOCKING SLIDE |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | YELLOW |
