NSN 5940-00-881-8084
Part Details | QUICK DISCONNECT TERMINAL
5940-00-881-8084 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: SW31789, 244063R1, 65C354531, 65C35453-1, 324225, 5940-00-881-8084, 00-881-8084, 5940008818084, 008818084
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 26, 1972 | 00-881-8084 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
TAPER PLUG

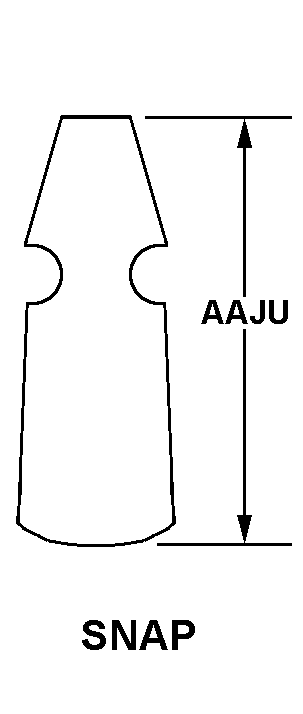

SNAP
Cross Reference | NSN 5940-00-881-8084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW31789 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| 244063R1 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 65C35453-1 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
| 324225 | 00779 | TE CONNECTIVITY CORPORATIONDBA TE CONNECTIVITY |
Technical Data | NSN 5940-00-881-8084
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SNAP |
| OVERALL LENGTH | 0.767 INCHES |
| QUICK DISCONNECT STYLE | TAPER PLUG |
| MAJOR PLUG DIAMETER | 0.161 INCHES |
| MINOR PLUG DIAMETER | 0.125 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
