NSN 5940-01-020-8401
Part Details | QUICK DISCONNECT TERMINAL
5940-01-020-8401 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 1546734, 5940-01-020-8401, 01-020-8401, 5940010208401, 010208401
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 07, 1976 | 01-020-8401 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

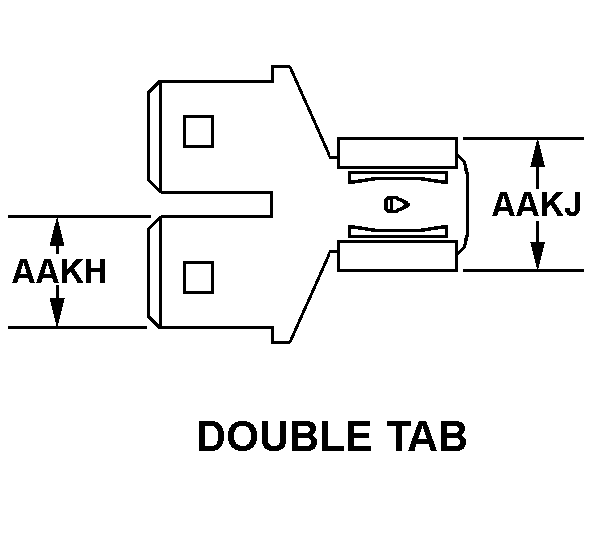

DOUBLE TAB
INTERNAL
Cross Reference | NSN 5940-01-020-8401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1546734 | 83298 | ALLIED SIGNAL INCAEROSPACE EQUIPMENT SYSTEMS |
Technical Data | NSN 5940-01-020-8401
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | INTERNAL |
| OVERALL LENGTH | 0.750 INCHES |
| MATERIAL THICKNESS | 0.062 INCHES |
| QUICK DISCONNECT STYLE | DOUBLE TAB |
| TAB WIDTH | 0.125 INCHES |
| WIDTH OF TAB ACCOMMODATED | 0.250 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
