NSN 5940-01-088-6840
Part Details | QUICK DISCONNECT TERMINAL
5940-01-088-6840 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 0100122, 11668338, 5940-01-088-6840, 01-088-6840, 5940010886840, 010886840
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 17, 1980 | 01-088-6840 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

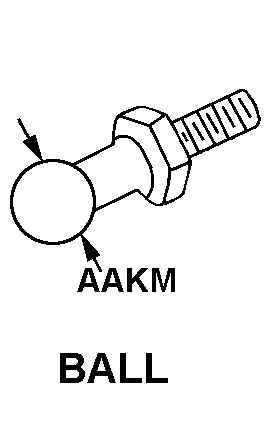

BALL
SNAP
Cross Reference | NSN 5940-01-088-6840
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0100122 | 15235 | CROUSE-HINDS CO |
| 11668338 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5940-01-088-6840
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | SNAP |
| OVERALL LENGTH | 2.281 INCHES |
| QUICK DISCONNECT STYLE | BALL |
| BALL DIAMETER | 0.625 INCHES |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| FEATURES PROVIDED | MOUNTING HARDWARE |
