NSN 5940-01-103-8312
Part Details | QUICK DISCONNECT TERMINAL
5940-01-103-8312 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: MEVU10250DMX, MEVU10-250DMX, D351101, D35-1101, 2796, MEVU10250DMX, MEVU10-250DMX, D351101, D35-1101, 10RC250T, 5940-01-103-8312, 01-103-8312, 5940011038312, 011038312
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 21, 1980 | 01-103-8312 | 61180 ( TERMINAL, QUICK DISCONNECT ) |

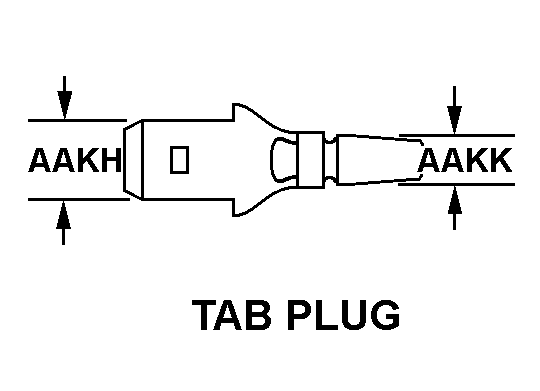

REFERENCE DRAWINGS & PICTURES
TAB PLUG
EXTERNAL
Cross Reference | NSN 5940-01-103-8312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MEVU10-250DMX | 53387 | 3M COMPANYDIV ELECTRO AND COMMUNICATIONS |
| D35-1101 | 28156 | 3M COMPANYDIV HEALTH CARE BUSINESS |
| 2796 | 91967 | HALSIT HOLDINGS, LLCDBA ABBATRON |
| MEVU10-250DMX | 75037 | MINNESOTA MINING AND MFG CO 3MCOMPANY |
| D35-1101 | 75037 | MINNESOTA MINING AND MFG CO 3MCOMPANY |
| 10RC250T | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5940-01-103-8312
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | EXTERNAL |
| OVERALL LENGTH | 1.062 INCHES |
| MATERIAL THICKNESS | 0.031 INCHES |
| QUICK DISCONNECT STYLE | TAB PLUG |
| TAB WIDTH | 0.125 INCHES |
| MAJOR PLUG DIAMETER | 0.344 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | SILVER |
| FEATURES PROVIDED | NONREMOVABLE SOLDER LUG |
