NSN 5940-01-112-9744
Part Details | QUICK DISCONNECT TERMINAL
5940-01-112-9744 A terminal which is a component of a TERMINAL SET, QUICK DISCONNECT or a SPLICE SET, QUICK DISCONNECT, and incorporates a means permitting its rapid engagement and disengagement, without the use of tools, to a mating part(s). It is designed either for attachment to a stud, post, chassis, or the like, or for permanent attachment to an electrical wire or cable. For items with cylindrical mating ends, see FERRULE, ELECTRICAL CONDUCTOR.
Alternate Parts: 5720219001, 572-021-9001, 5720219001, 572-021-9001, FVDGM22165, FVDGM-2216-5, 5940-01-112-9744, 01-112-9744, 5940011129744, 011129744
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 14, 1981 | 01-112-9744 | 61180 ( TERMINAL, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES

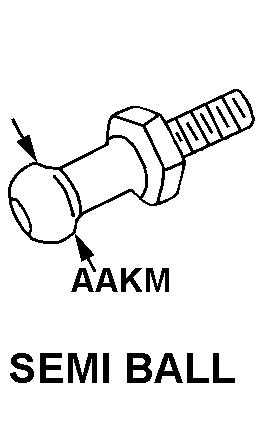

SEMI BALL
EXTERNAL
Cross Reference | NSN 5940-01-112-9744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 572-021-9001 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 572-021-9001 | 64547 | HONEYWELL INTERNATIONAL INCDBA HONEYWELL |
| FVDGM-2216-5 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
Technical Data | NSN 5940-01-112-9744
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | EXTERNAL |
| OVERALL LENGTH | 1.020 INCHES |
| MATERIAL THICKNESS | 0.016 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 16 AWG |
| QUICK DISCONNECT STYLE | SEMI BALL |
| BALL DIAMETER | 0.030 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | WHITE |
