NSN 5940-01-159-8556
Part Details | QUICK DISCONNECT TERMINAL SET
5940-01-159-8556 A group of items which, when combined, conform with the definition of TERMINAL, LUG or TERMINAL, STUD. It also provides the additional feature of allowing the conductor accommodation facility(ies) of the lug or stud to be simply and rapidly separated from the mounted (fixed) position of the lug or stud without the use of tools. See also TERMINAL, LUG and TERMINAL, STUD.
Alternate Parts: 18578, 5940-01-159-8556, 01-159-8556, 5940011598556, 011598556
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 14, 1983 | 01-159-8556 | 61181 ( TERMINAL SET, QUICK DISCONNECT ) |
REFERENCE DRAWINGS & PICTURES
TAB RECEPTACLE MODIFIED
STRAIGHT BLANK

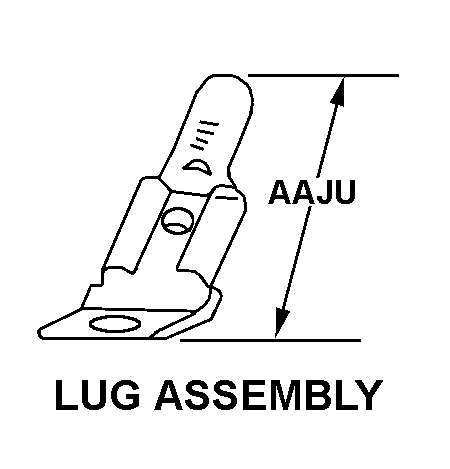

LUG ASSEMBLY
Cross Reference | NSN 5940-01-159-8556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18578 | 05573 | BARNES GROUP INC.DBA BARNES DISTRIBUTION |
Technical Data | NSN 5940-01-159-8556
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | LUG ASSEMBLY |
| OVERALL LENGTH | 1.500 INCHES |
| MOUNTING METHOD STYLE | STRAIGHT BLANK |
| MOUNTING TONGUE WIDTH | 0.250 INCHES |
| MOUNTING FACILITY THICKNESS | 0.031 INCHES |
| QUICK DISCONNECT STYLE | TAB RECEPTACLE MODIFIED |
| WIDTH OF TAB ACCOMMODATED | 0.312 INCHES |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
