NSN 5945-00-138-1178
Part Details | ELECTRICAL SOLENOID
5945-00-138-1178 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 6056PC, 6051, 5945-00-138-1178, 00-138-1178, 5945001381178, 001381178
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 23, 1971 | 00-138-1178 | 00310 ( SOLENOID, ELECTRICAL ) |

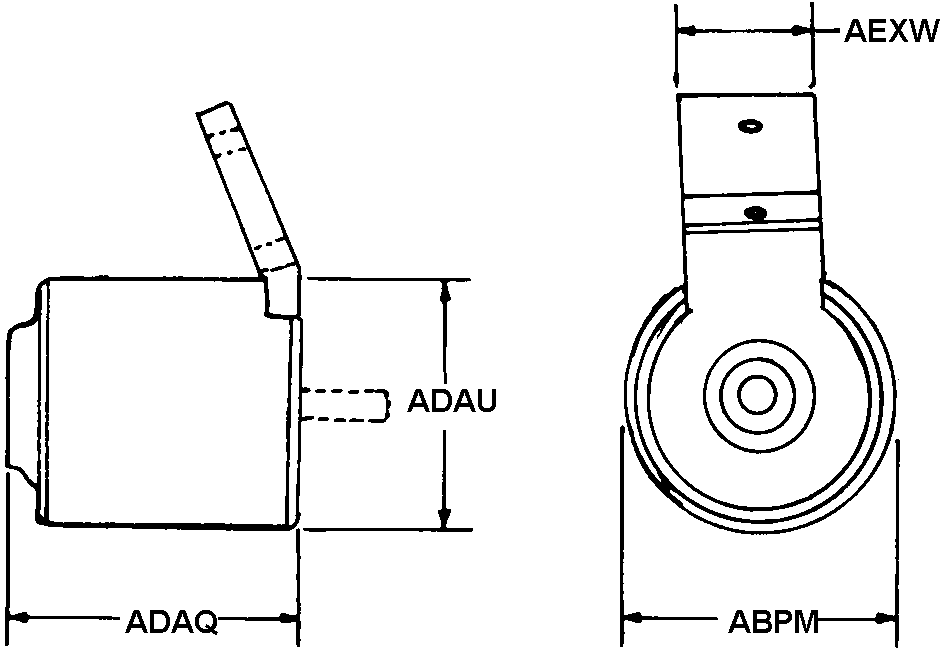

REFERENCE DRAWINGS & PICTURES
ENCLOSED FRAME
Cross Reference | NSN 5945-00-138-1178
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6056PC | 90800 | ROMAC INDUSTRIES, INC.DBA HAYS FLUID CONTROL DIVISION |
| 6051 | 90800 | ROMAC INDUSTRIES, INC.DBA HAYS FLUID CONTROL DIVISION |
Technical Data | NSN 5945-00-138-1178
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ENCLOSED FRAME |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | INTERNAL PLUNGER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| TERMINAL LOCATION | CIRCUMFERENCE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY HEIGHT | 2.000 INCHES NOMINAL |
| MOUNTING BASE WIDTH | 1.000 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 24.0 AC MAXIMUM |
| ELECTRIC POWER RATING | 14.0 WATTS NOMINAL |
| LINEAR FORCE DELIVERED | 1.50 OUNCES |
| MOUNTING FACILITY PATTERN | SINGLE POSITION |
| CASE MATERIAL | METAL |
| CASE SURFACE TREATMENT | ANY ACCEPTABLE |
| FREQUENCY IN HERTZ | 50.0 MINIMUM AND 60.0 MAXIMUM |
