NSN 5945-00-155-9931
Part Details | ELECTRICAL SOLENOID
5945-00-155-9931 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: TDE01AS04, A37240002, A37240-002, 5945-00-155-9931, 00-155-9931, 5945001559931, 001559931
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 24, 1971 | 00-155-9931 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

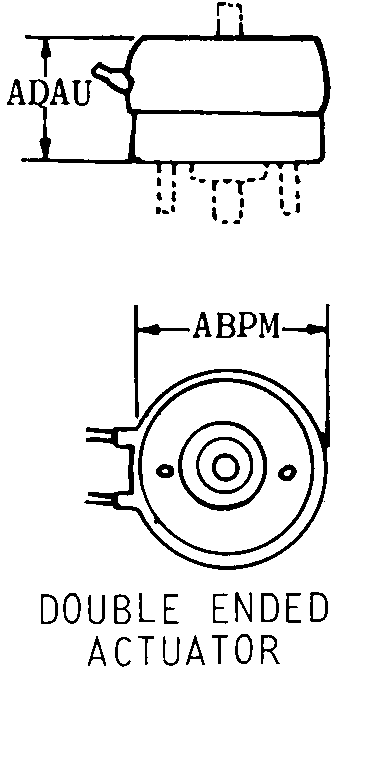

DOUBLE ENDED ACTUATOR
Cross Reference | NSN 5945-00-155-9931
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TDE01AS04 | 04643 | COMTEC INFORMATION SYSTEMS INCDIGITRONICS DIV |
| A37240-002 | 81840 | SAIA-BURGESS INC. |
Technical Data | NSN 5945-00-155-9931
| Characteristic | Specifications |
|---|---|
| BODY STYLE | DOUBLE ENDED ACTUATOR |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | PLAIN |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED STUD |
| TERMINAL LOCATION | CIRCUMFERENCE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY DIAMETER | 1.312 INCHES NOMINAL |
| BODY HEIGHT | 0.750 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 6.0 DC MAXIMUM |
| ELECTRICAL RESISTANCE | 1.97 OHMS NOMINAL |
| LINEAR FORCE DELIVERED | 5.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.025 INCHES |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.875 INCHES NOMINAL |
| CASE MATERIAL | STEEL |
| CASE SURFACE TREATMENT | ANY ACCEPTABLE |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
