NSN 5945-00-170-4160
Part Details | ELECTRICAL SOLENOID
5945-00-170-4160 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 340B5750, 3400005750, 340-0005750, 6002690, 141825, 14182, 5945-00-170-4160, 00-170-4160, 5945001704160, 001704160
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 19, 1972 | 00-170-4160 | 00310 ( SOLENOID, ELECTRICAL ) |

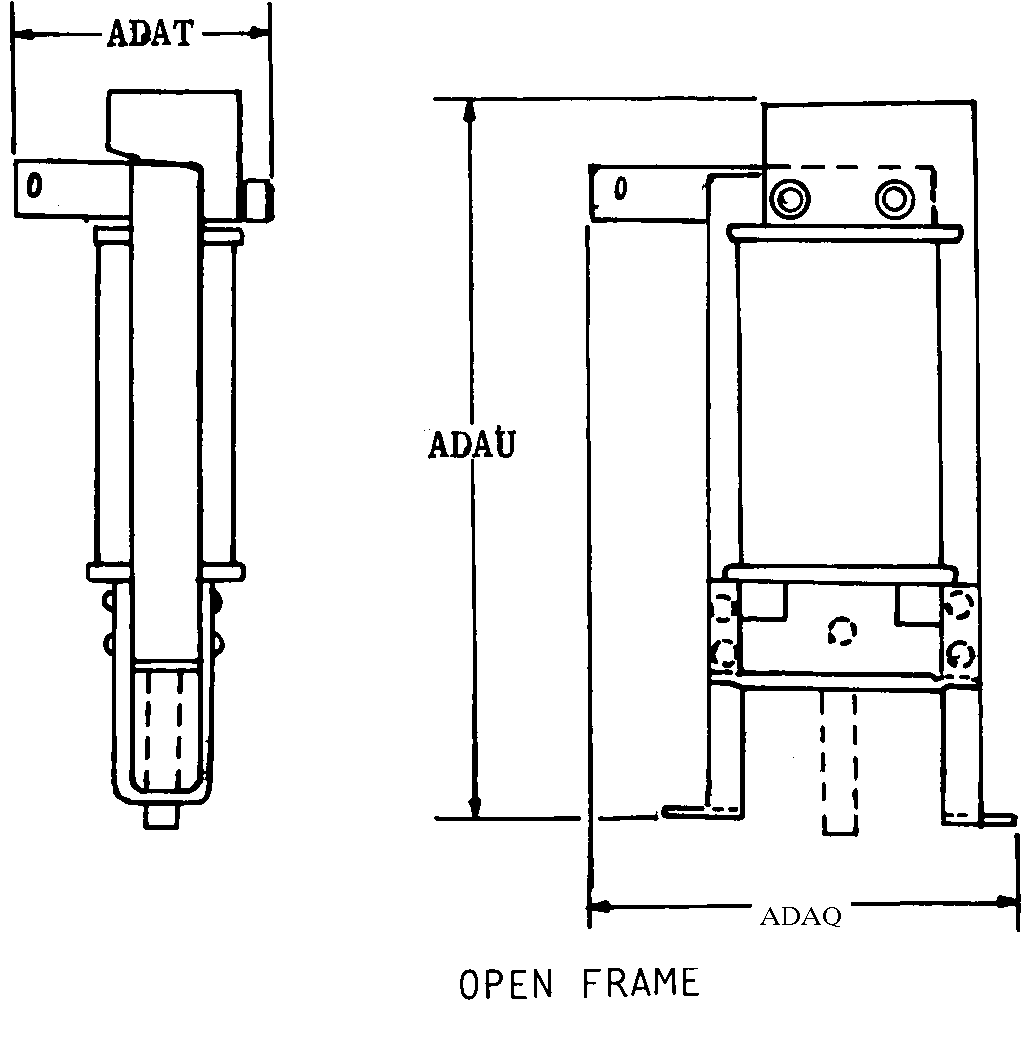

REFERENCE DRAWINGS & PICTURES
OPEN FRAME
Cross Reference | NSN 5945-00-170-4160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 340B5750 | 42470 | NCR CORPORATIONDBA NCR |
| 340-0005750 | 42470 | NCR CORPORATIONDBA NCR |
| 6002690 | 56200 | TYMSHARE INCCOMPUTER SUPPORT SERVICES DIV |
| 141825 | 26921 | XEROX CORPORATIONDBA XEROX |
| 14182 | 26921 | XEROX CORPORATIONDBA XEROX |
Technical Data | NSN 5945-00-170-4160
| Characteristic | Specifications |
|---|---|
| BODY STYLE | OPEN FRAME |
| MAGNETIC COIL QUANTITY | 2 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| TERMINAL LOCATION | END OPPOSITE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| INCLOSURE TYPE | UNINCLOSED |
| BODY LENGTH | 3.219 INCHES NOMINAL |
| BODY WIDTH | 0.375 INCHES NOMINAL |
| BODY HEIGHT | 1.875 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| CUBIC MEASURE | 2.263 CUBIC INCHES |
| FRAGILITY FACTOR | MODERATELY RUGGED |
| STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
